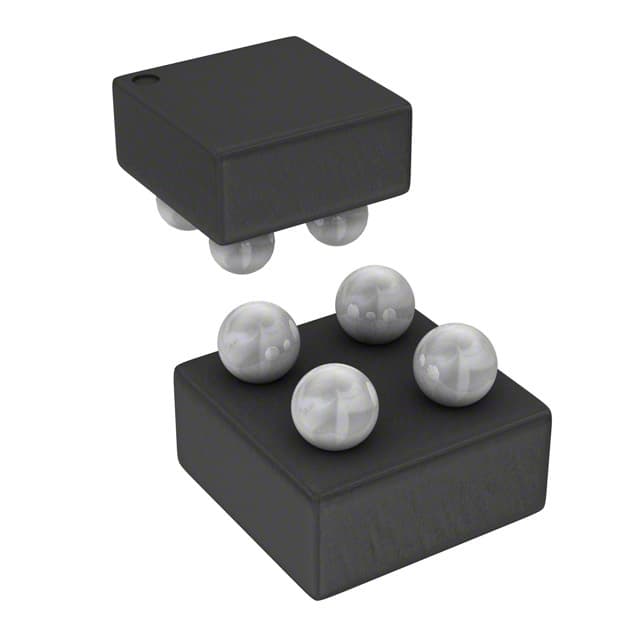

ROHM BRCB008GWZ-3E2

Manufacturer No:

BRCB008GWZ-3E2

Manufacturer:

ROHM

Package:

6-XFBGA, CSPBGA

Description:

1.8/3.3V V Memory IC 0.94mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BRCB008GWZ-3E2 information

ROHM BRCB008GWZ-3E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BRCB008GWZ-3E2.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
6-XFBGA, CSPBGA

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

Published
2013

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

Technology
CMOS

Voltage - Supply
1.7V~3.6V

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-PBGA-B4

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
1.8/3.3V

Supply Voltage-Min (Vsup)
1.7V

Interface
2-Wire, I2C, Serial

Memory Size
8Kb 1K x 8

Memory Type
Non-Volatile

Clock Frequency
401kHz

Supply Current-Max
0.002mA

Memory Format
EEPROM

Memory Interface
I2C

Organization
1KX8

Memory Width
8

Write Cycle Time - Word, Page
5ms

Standby Current-Max
0.000002A

Memory Density
8192 bit

Serial Bus Type
I2C

Endurance
1000000 Write/Erase Cycles

Write Cycle Time-Max (tWC)
5ms

Data Retention Time-Min
40

I2C Control Byte
1010XMMR

Length
0.94mm

Height Seated (Max)
0.33mm

Width
0.94mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BRCB008GWZ-3E2.

BRCB008GWZ-3E2 Overview

Non-Volatile is its memory type. It is available in a case with a Cut Tape (CT) shape. As you can see, it is embedded in 6-XFBGA, CSPBGA case. There is an 8Kb 1K x 8 memory capacity on the chip. In this device, the memory is of the EEPROM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 1.7V~3.6V is possible to be applied to the supply. There is a recommendation that Surface Mount mounting type should be used for this product. As you can see from the diagram, the chip is planted with 4 terminations. In total, 1 functions are supported by this part. With a clock frequency of 401kHz, the memory rotates on its own. This memory chip requires a mere 1.8/3.3V of power. By integrating with the I2C-type serial bus, this memory transmits data to the processor. This memory ics is capable of operating with an input current of 0.002mA at max.

BRCB008GWZ-3E2 Features

Package / Case: 6-XFBGA, CSPBGA

BRCB008GWZ-3E2 Applications

There are a lot of ROHM Semiconductor
BRCB008GWZ-3E2 Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
