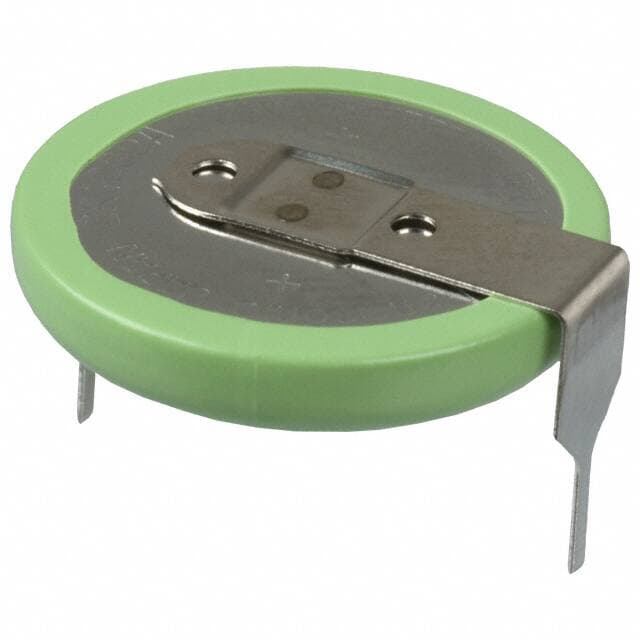

Panasonic BR-1632A/HAN

Manufacturer No:

BR-1632A/HAN

Manufacturer:

Panasonic

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BR-1632A/HAN information

Panasonic BR-1632A/HAN technical specifications, attributes, parameters and parts with similar specifications to Panasonic BR-1632A/HAN.

Type
Parameter

Factory Lead Time
22 Weeks

Contact Plating
Tin

Mount
Through Hole

Number of Pins
2

Weight
1.5g

Manufacturer Package Identifier
BR-1632A/HAN

Series
BR1632

Published
2006

Size / Dimension
0.63Dia x 0.13 H 16.0mmx3.2mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

HTS Code
8506.80.00.00

Reach Compliance Code
compliant

Termination Style
PC Pin (Horizontal Mount)

Output Voltage
3V

Terminal Type
TAB

Battery Chemistry
Lithium Poly-Carbon Monoflouride

Number of Cells
1

Battery Cell Size
Coin 16.0mm

Capacity
120mAh

Discharge Rate
30?A

Chemistry/Technology
Lithium

Height
6.6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Panasonic BR-1632A/HAN.

Datasheets:

panasonicbsg-br1632avan-datasheets-6176.pdf

panasonicbsg-br1632ahan-datasheets-6724.pdf

MSDS Material Safety Datasheet:

panasonicbsg-br1632avan-msdsmaterialsafetydatasheet-6178.pdf

BR-1632A/HAN Description

BR-1632A/HAN is a 3V BR Coin-type Lithium Battery for high temperatures. In addition to the appeal of our BR series coin-type-type lithium batteries, poly-carbon monofluoride cells can operate in temperatures up to 125?. It can be applied in many applications, such as automotive electronic components(TPMS, ETC), hot water and electricity meters, memory backup(host computers, FA equipment), etc.

BR-1632A/HAN Features

Nominal voltage: 3V

Nominal capacity: 120mA

Continuous drain: 0.03mA

Diameter: 16mm

Operating temperature: -40 to +125?

BR-1632A/HAN Applications

Automotive electronic components

Hot water and electricity meters

Memory backup

Host computers

FA equipment
