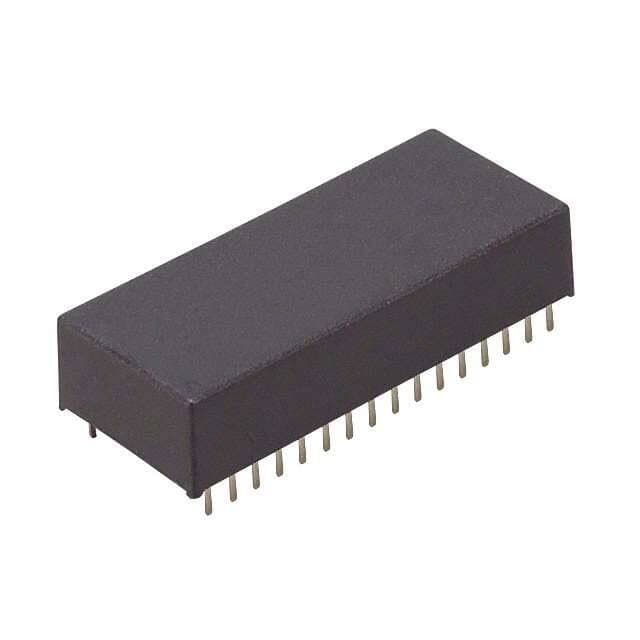

TI BQ4013YMA-120
Manufacturer No:
BQ4013YMA-120
Manufacturer:
Package:
32-DIP Module (0.61, 15.49mm)
Description:
5V V Through Hole Memory IC BQ4013 1 Mb kb 42.8mm mm 50mA mA 8b b
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
BQ4013YMA-120 information
TI BQ4013YMA-120 technical specifications, attributes, parameters and parts with similar specifications to TI BQ4013YMA-120.
- Type
- Parameter
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 32-DIP Module (0.61, 15.49mm)
- Number of Pins
- 32
- Operating Temperature
- 0°C~70°C TA
- Packaging
- Tube
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 32
- ECCN Code
- EAR99
- Subcategory
- SRAMs
- Technology
- NVSRAM (Non-Volatile SRAM)
- Voltage - Supply
- 4.5V~5.5V
- Terminal Position
- DUAL
- Number of Functions
- 1
- Supply Voltage
- 5V
- Terminal Pitch
- 2.54mm
- Base Part Number
- BQ4013
- Operating Supply Voltage
- 5V
- Power Supplies
- 5V
- Memory Size
- 1Mb 128K x 8
- Operating Supply Current
- 50mA
- Nominal Supply Current
- 50mA
- Memory Format
- NVSRAM
- Memory Interface
- Parallel
- Data Bus Width
- 8b
- Organization
- 128KX8
- Memory Width
- 8
- Write Cycle Time - Word, Page
- 120ns
- Density
- 1 Mb
- Standby Current-Max
- 0.004A
- Access Time (Max)
- 120 ns
- Word Size
- 8b
- Length
- 42.8mm
- Height Seated (Max)
- 9.53mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for TI BQ4013YMA-120.
Datasheets:
BQ4013YMA-120 Overview
Non-Volatile is its memory type. It is available in a case with a Tube shape. As you can see, it is embedded in 32-DIP Module (0.61, 15.49mm) case. There is an 1Mb 128K x 8 memory capacity on the chip. In this device, the memory is of the NVSRAM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 4.5V~5.5V is possible to be applied to the supply. There is a recommendation that Through Hole mounting type should be used for this product. As you can see from the diagram, the chip is planted with 32 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. To select similar parts, many people use the device's base part number BQ4013. It is encased in an 32-pin package that contains this ic memory chip. It is noted that the operating supply voltage of this memory is 5V. Chips such as this one are mounted using Through Hole mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 50mA. This memory chip requires a mere 5V of power. Generally, this component is considered a type of SRAMs. Devices operating at 50mA volts are recommended.
BQ4013YMA-120 Features
Package / Case: 32-DIP Module (0.61, 15.49mm)
32 Pins
Operating Supply Voltage:5V
BQ4013YMA-120 Applications
There are a lot of Texas Instruments
BQ4013YMA-120 Memory applications.
- telecommunications
- workstations,
- DVD disk buffer
- data buffer
- nonvolatile BIOS memory
- Camcorders
- embedded logic
- eDRAM
- graphics card
- hard disk drive (HDD)
