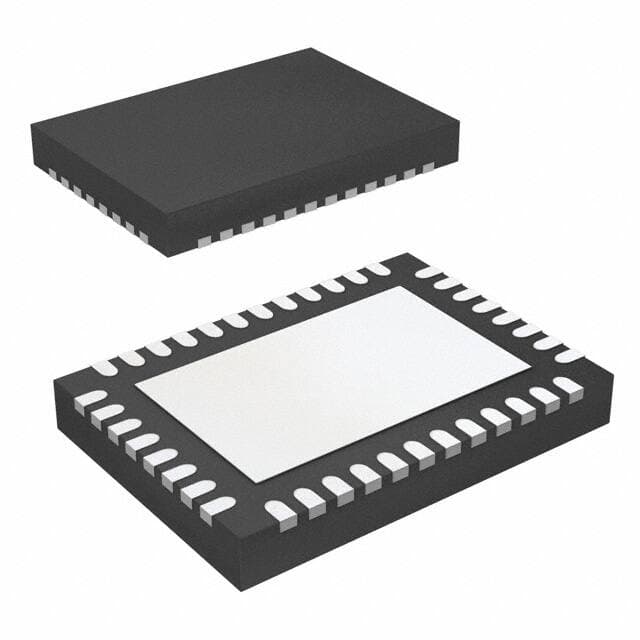

TI BQ24730RGFR

Manufacturer No:

BQ24730RGFR

Manufacturer:

Package:

40-VFQFN Exposed Pad

Description:

Constant - Programmable BQ24730 40-VFQFN Exposed Pad Tape & Reel (TR) 4.5mA 40 Terminals 40 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BQ24730RGFR information

TI BQ24730RGFR technical specifications, attributes, parameters and parts with similar specifications to TI BQ24730RGFR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
40-VFQFN Exposed Pad

Number of Pins
40

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
40

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Additional Feature
ALSO OPERATE IN VOLTAGE ADJUSTABLE MODE FROM 12.6 TO 16.8

HTS Code
8542.39.00.01

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
BQ24730

Pin Count
40

Output Voltage
16.8V

Operating Supply Voltage
24V

Input Voltage-Nom
16.8V

Output Current
4.5mA

Input Voltage (Min)
8V

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BUCK

Switching Frequency-Max
345kHz

Fault Protection
Over Current, Reverse Battery

Battery Chemistry
Multi-Chemistry

Number of Cells
3 ~ 4

Programmable Features
Current

Current - Charging
Constant - Programmable

Length
7mm

Height Seated (Max)
1mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI BQ24730RGFR.

BQ24730RGFR Overview

It is available in the package Tape & Reel (TR).Located in package 40-VFQFN Exposed Pad, it can be found there.There is a mounting type Surface Mount specified for the device.Keeping the temperature at -40°C~85°C TA is the right choice.It provides its functionality by using an analog IC called BATTERY CHARGE CONTROLLER.The device cannot be charged without Constant - Programmable current flowing through it.There are related parts to this device according to the base part number BQ24730.The number of terminations found in it is 40 as a whole.The device is equipped with a total of 40 pins.Programmable features, such as Current, are available.For the product to work properly, 40 pins must be connected in order to make it work.Having the output voltage set to 16.8V may result in high efficiency.Operation is done using a 4.5mA output current.As far as the mounting is concerned, it is mounted in the way of Surface Mount.Input voltage is 16.8V.It is recommended that the supply voltage be set to 24V for maximum efficiency.It is also possible, with this device, to generate the additional features of ALSO OPERATE IN VOLTAGE ADJUSTABLE MODE FROM 12.6 TO 16.8.A voltage of 8V volts is the minimal input voltage.A switching frequency of 345kHz is the maximum for the part.

BQ24730RGFR Features

Addtional features of ALSO OPERATE IN VOLTAGE ADJUSTABLE MODE FROM 12.6 TO 16.8
40-VFQFN Exposed Pad package

BQ24730RGFR Applications

There are a lot of Texas Instruments
BQ24730RGFR Battery Chargers ICs applications.

Fast charge
Fleet management
Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
Rental fleets
Truck dealers
