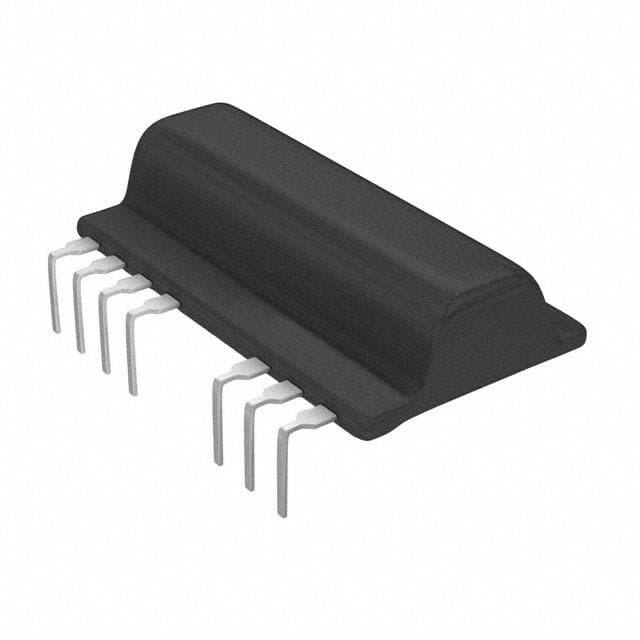

ROHM BP5311XA
Manufacturer No:
BP5311XA
Manufacturer:
Package:
9-SIP, 7 Leads, Formed
Description:
Converter, LCD 260 Cel SINGLE Specialized Voltage Regulator 0°C~60°C BP5311 9 Pins 7 Terminations 9-SIP, 7 Leads, Formed
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
BP5311XA information
ROHM BP5311XA technical specifications, attributes, parameters and parts with similar specifications to ROHM BP5311XA.
- Type
- Parameter
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 9-SIP, 7 Leads, Formed
- Number of Pins
- 9
- Operating Temperature
- 0°C~60°C
- Packaging
- Tray
- Published
- 2002
- JESD-609 Code
- e3/e2
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 7
- Terminal Finish
- TIN/TIN COPPER
- Applications
- Converter, LCD
- Subcategory
- Other Analog ICs
- Technology
- HYBRID
- Terminal Position
- SINGLE
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 2.54mm
- Time@Peak Reflow Temperature-Max (s)
- 10
- Base Part Number
- BP5311
- Pin Count
- 9
- JESD-30 Code
- R-XSMA-T7
- Qualification Status
- Not Qualified
- Output Voltage
- 29.5V
- Output Type
- Fixed
- Max Output Current
- 25mA
- Voltage - Output 1
- 29.5V
- Input Voltage-Nom
- 5V
- Trim/Adjustable Output
- YES
- Analog IC - Other Type
- DC-DC REGULATED POWER SUPPLY MODULE
- Voltage - Input
- 4.5V~5.5V
- Min Input Voltage
- 4.5V
- Max Input Voltage
- 5.5V
- Current - Output 1
- 25mA
- Total Power Output-Max
- 0.775W
- Nominal Input Voltage
- 5V
- Height
- 15.5mm
- Length
- 26mm
- Width
- 6mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ROHM BP5311XA.
Datasheets:
BP5311XA Overview
The system supports a total of 1 outputs. In order to facilitate transportation, alternator regulator is packaged in 9-SIP, 7 Leads, Formed. It's ready to ship in Tray packages. This Through Hole mount is universal and can be easily adapted. The shunt regulator is intended for use at Converter, LCD as well as other applications. To ensure proper functioning, the operating temperature should be set to 0°C~60°C. This external regulator requires a voltage of 4.5V~5.5Vas its input voltage. The voltage regulator has 7terminals. It has received a great deal of support as a DC-DC REGULATED POWER SUPPLY MODULE regulator. The pinout of the rectifier regulator begins with the pins it has at 9. For more pin-to-pin solutions, please search BP5311. Mounting on PCBs or other boards is easy with the Through Hole. A power supply regulator with 9pins is present. It is important to note that other Other Analog ICs in the industry, such as the voltage controller, also play a significant part. The input voltage of this rectifier regulator must be higher than 4.5V. At its maximum, the voltage regulator will produce current 25mA.
