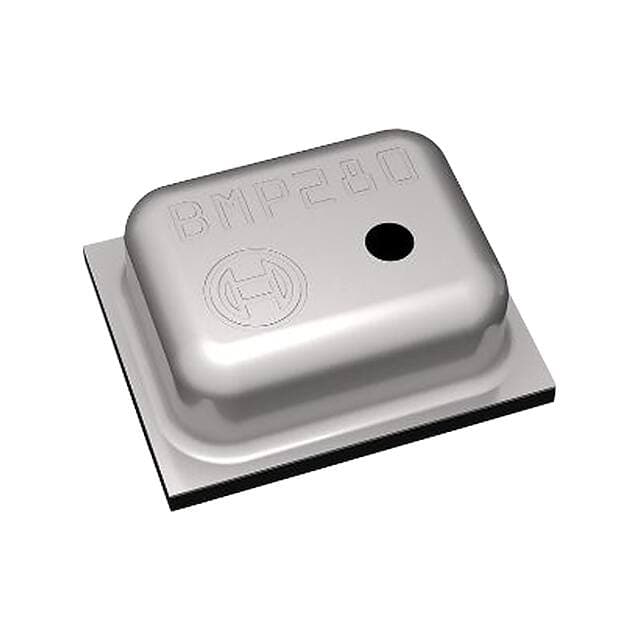

BOSCH BMP280

Manufacturer No:

BMP280

Manufacturer:

BOSCH

Package:

8-SMD

Description:

Description: Peizoresistive Sensor, Absolute, 4.351Psi Min, 15.95Psi Max, Rectangular, Surface Mount, LGA-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BMP280 information

BOSCH BMP280 technical specifications, attributes, parameters and parts with similar specifications to BOSCH BMP280.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
ROBERT BOSCH GMBH

Reach Compliance Code
compliant

Additional Feature
IT ALSO HAS 3-WIRE INTERFACE

Body Breadth
2 mm

Body Height
0.82 mm

Body Length or Diameter
2.5 mm

Mounting Feature
SURFACE MOUNT

Number of Bits
20

Operating Current-Max
0.0042 mA

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Output Interface Type
4-WIRE INTERFACE

Output Type
DIGITAL OUTPUT

Package Shape/Style
RECTANGULAR

Port Type
HOLE

Pressure Range-Max
15.95 Psi

Pressure Range-Min
4.351 Psi

Pressure Sensing Mode
ABSOLUTE

Sensors/Transducers Type
PRESSURE SENSOR,PIEZORESISTIVE

Supply Voltage-Max
3.6 V

Supply Voltage-Min
1.71 V

Surface Mount
YES

Download datasheets and manufacturer documentation for BOSCH BMP280.

Datasheets:

BSCH-S-A0017215186-1.pdf

BMP280 Overview

We have included this transducer in the 8-SMD package for your convenience. If you want reliable results, you should set the transducers' temperature to -40°C~85°C. In general, the transducers are capable of operating at a supply voltage of 1.71V~3.6V. A pressure range of 15.95 Psi is the maximum range set by this transducer. Electronic components like this are packaged in Tape & Reel (TR) packages.

BMP280 Features

Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: 8-SMD
Operating Temperature: -40°C~85°C
Operating Pressure: 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa)

BMP280 Applications

There are a lot of Bosch Sensortec BMP280 Transducers applications.

Level indicators
Hydraulic, brake, and engine oil fluid pressure monitoring
Drones
Air movement control
Process Control
Navigation systems
Waterproof watches and diving computers
Smart watches, wearable & smart phone ( e.g. altitude, fitness tracking, step counting, fall detection)
Health care applications (e.g. spirometry)
Context awareness
