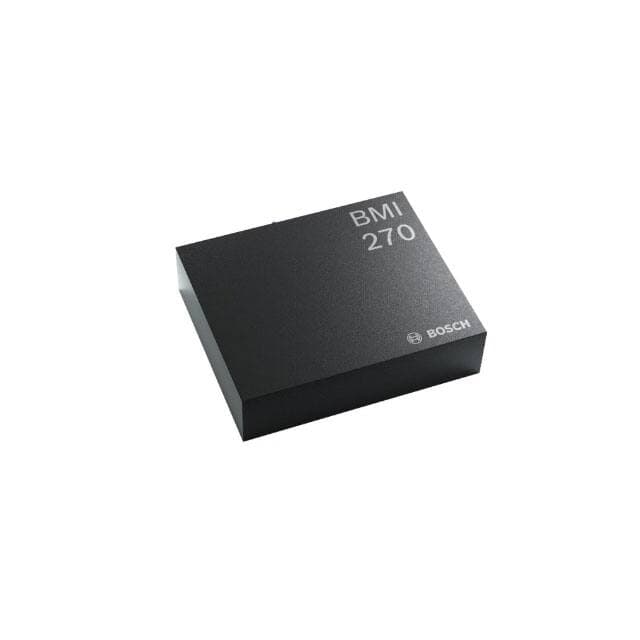

Bosch Sensortec BMI270

Manufacturer No:

BMI270

Manufacturer:

Bosch Sensortec

Package:

14-VFLGA

Description:

Sensor/Transducer,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BMI270 information

Bosch Sensortec BMI270 technical specifications, attributes, parameters and parts with similar specifications to Bosch Sensortec BMI270.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
ROBERT BOSCH GMBH

Reach Compliance Code
compliant

ECCN Code
EAR99

Download datasheets and manufacturer documentation for Bosch Sensortec BMI270.

Datasheets:

BSCH-S-A0020421971-1.pdf

BMI270 Description

The BMI270 is a 6-axis, smart, low-power Inertial Measurement Unit for high-performance applications. This inertial measurement unit (IMU) combines accurate acceleration and angular rate (gyroscopic) measurement with clever on-chip motion-triggered interrupt capabilities. It is highly integrated and low power. An ultra-low power IMU designed for wearable applications is the BMI270.

The device integrates:

16-bit digital, triaxial accelerometer with ±2g/±4g/±8g/±16g range
16-bit digital, triaxial gyroscope with ±125dps/±250dps/±500dps/±1000dps/±2000dps range

BMI270 Features

2 KB on-chip FIFO buffer for accelerometer, gyroscope, timestamps, and AUX sensor data
Fast offset error compensation for accelerometer and gyroscope
Fast sensitivity error compensation for gyroscope (CRT, max. sensitivity error < 1%)
HW synchronization of accelerometer, gyroscope, and AUX sensor (< 1 µs)
Sensortime stamps for accurate system (host) and sensor (IMU) time synchronization (<40 µs)
2 independent programmable I/O pins for interrupt and synchronization events
RoHS compliant, halogen and lead free
Compact standard size LGA mold package, 14 pins, footprint 2.5x3.0mm² height 0.83mm
Primary digital interface with 10 MHz slave SPI (4-wire, 3-wire) and up to 1MHz I²C (Fm+)
Output data rates (ODR): 25 Hz ? 6.4 kHz (gyroscope) and 0.78 Hz ? 1.6 kHz (accelerometer)
Programmable low-pass filter (accelerometer ? gyroscope): bandwidth ca. 5 ? 3 ? 680 ? 890 Hz
Wide power supply range: Analog VDD 1.71V ? 3.6V and independent VDDIO 1.2V?3.6V
Ultra-low current consumption: typ. 685 µA (in full ODR and aliasing-free operation)
Performance mode for gyroscope to minimize noise level: typ. < 8 mdps /?Hz.
Built-in power management unit (PMU) for advanced power management and low power modes
Rapid startup time: 2 ms for gyroscope (in fast start mode) and 2 ms for accelerometer
Freely configurable secondary digital interface

- 400 kHz I²C (Fm) master interface hub for 1 I2C AUX sensor (e.g. ext. magnetometer, pressure)

* data synchronized to IMU

- 10 MHz slave SPI (4-wire, 3-wire) for high speed, calibration free OIS / Dual OIS (SPI) applications

* up to 6.4 kHz ODR, control register access and max. 676 µs group delay

BMI270 Applications

Wearables
Hearables
Smart clothing
Augmented / virtual reality (AR/VR)
