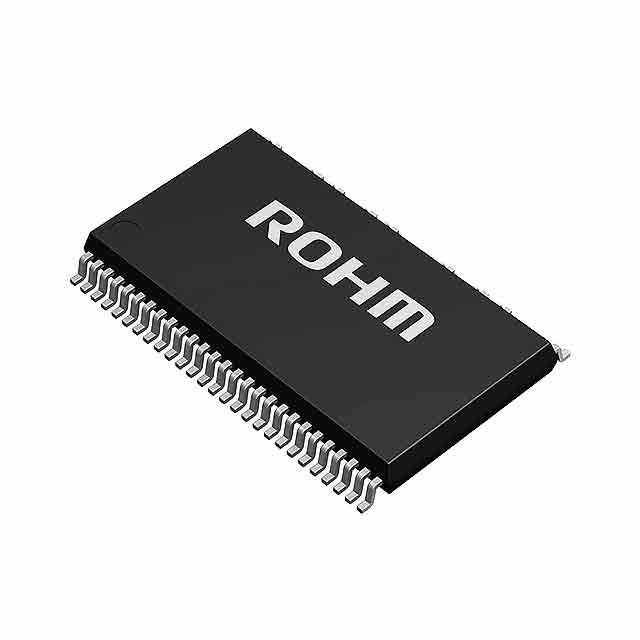

ROHM BM6209FS-E2

Manufacturer No:

BM6209FS-E2

Manufacturer:

ROHM

Package:

Description:

4A mA 11.4mm mm Motor Drivers 36 15V V 22mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BM6209FS-E2 information

ROHM BM6209FS-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BM6209FS-E2.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Packaging
Cut Tape (CT)

Published
2014

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
36

Max Operating Temperature
125°C

Min Operating Temperature
-20°C

Additional Feature
IT ALSO REQUIRES 310 V

HTS Code
8542.39.00.01

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G36

Max Output Current
4A

Supply Voltage-Max (Vsup)
16.5V

Supply Voltage-Min (Vsup)
13.5V

Interface
Logic

Analog IC - Other Type
BRUSHLESS DC MOTOR CONTROLLER

Fault Protection
Over Temperature

Length
22mm

Height Seated (Max)
2.2mm

Width
11.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BM6209FS-E2.

BM6209FS-E2 Overview

This package is designed to work with [0].The part has 36terminations available.The amplifier should be set to 15V.In terms of mounting, it is recommended that it be mounted in Surface Mount.There is an analog integrated circuit BRUSHLESS DC MOTOR CONTROLLERpresent in the device.Drivers controllers also has a characteristic of [0].A maximum operating temperature of 125°Cis reached.There should be a temperature higher than -20°Cduring operation.In order to satisfy the requirements of operation, the maximum output current reaches [0].

BM6209FS-E2 Features

Additional Feature: IT ALSO REQUIRES 310 V

BM6209FS-E2 Applications

There are a lot of ROHM Semiconductor
BM6209FS-E2 motor drivers applications.

Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
Turn signals
