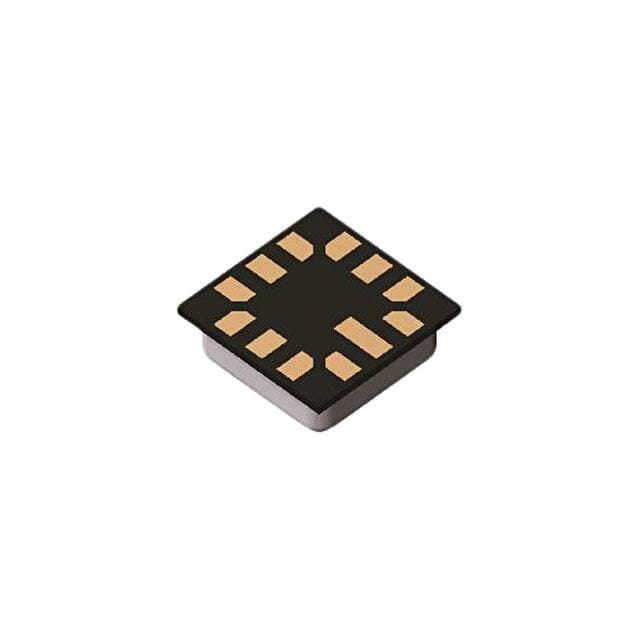

ROHM BM1383AGLV-ZE2

Manufacturer No:

BM1383AGLV-ZE2

Manufacturer:

ROHM

Package:

12-VFLGA

Description:

Absolute Pressure Sensor I2C -40°C~85°C 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) No Port ±1% 16 b 1.7V~3.6V Temperature Compensated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BM1383AGLV-ZE2 information

ROHM BM1383AGLV-ZE2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BM1383AGLV-ZE2.

Type
Parameter

Factory Lead Time
17 Weeks

Package / Case
12-VFLGA

Surface Mount
YES

Mounting Feature
SURFACE MOUNT

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2016

Feature
Temperature Compensated

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Applications
Board Mount

Additional Feature
IT ALSO HAVE PRESSURE SENSING MODE RELATIVE

Voltage - Supply
1.7V~3.6V

Output
16 b

Termination Style
SMD (SMT) Tab

Body Length or Diameter
2.5mm

Body Breadth
2.5 mm

Output Type
I2C

Accuracy
±1%

Operating Pressure
4.35PSI ~ 15.95PSI (30kPa ~ 110kPa)

Pressure Type
Absolute

Port Style
No Port

Maximum Pressure
290.08PSI (2000kPa)

Sensors/Transducers Type
PRESSURE SENSOR,PEIZORESISTIVE

Pressure Range-Max
15.95 Psi

Body Height
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BM1383AGLV-ZE2.

BM1383AGLV-ZE2 Overview

12-VFLGA includes this transducer for convenience. Reliable performance can be assured by setting the transducers to -40°C~85°C. A supply voltage of 1.7V~3.6V is sufficient for the transducers to operate well. 15.95 Psi is the transducer's maximum pressure range. In this package, there is an electronic component that looks like a Tape & Reel (TR).

BM1383AGLV-ZE2 Features

Moisture Sensitivity Level: 3 (168 Hours)
Package / Case: 12-VFLGA
Operating Temperature: -40°C~85°C
Operating Pressure: 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa)

BM1383AGLV-ZE2 Applications

There are a lot of ROHM Semiconductor
BM1383AGLV-ZE2 Transducers applications.

Leisure, Sports, and Fitness Activity Identification
Weather Forecasting
Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
Dry air system monitoring
Hydraulic, brake, and engine oil fluid pressure monitoring
Air brake pressure monitoring
Vertical velocity indication (e.g. rise/sink speed)
Internet of things
