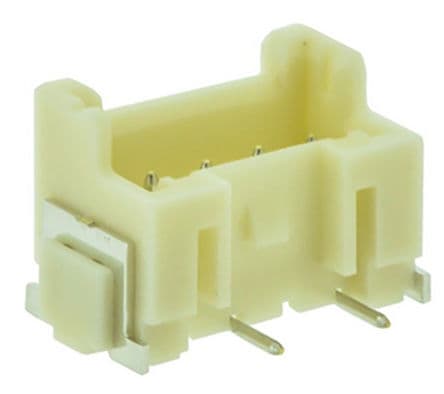

JST BM04B-XASS-TF(LF)(SN)

Manufacturer No:

BM04B-XASS-TF(LF)(SN)

Manufacturer:

JST

Package:

SMD/SMT

Description:

XA Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.370 9.40mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BM04B-XASS-TF(LF)(SN) information

JST BM04B-XASS-TF(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST BM04B-XASS-TF(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mounting Type
Surface Mount

Package / Case
SMD/SMT

Contact Shape
Circular

Insulation Material
Polyamide (PA), Nylon

Housing Material
Polyamide

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
XA

Published
2008

JESD-609 Code
e3

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
4

Color
Beige

Number of Rows
1

Gender
Male

Voltage - Rated
250V

Fastening Type
Locking Ramp

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Total Number of Contacts
4

Terminal Pitch
2.5mm

Insulation Height
0.370 9.40mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.098 2.50mm

Insulation Color
Natural

Shrouding
Shrouded - 4 Wall

Stack Height (Mating)
11.9mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST BM04B-XASS-TF(LF)(SN).

Datasheets:

jstsalesamericainc-sxa01tp06-datasheets-2855.pdf

BM04B-XASS-TF(LF)(SN) Overview

Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the XA Series, it can be found in this category.There are also other features such as TOP ENTRY, SHROUDED, to name only a few.An enclosed device is enclosed in the packaging with the SMD/SMT.With its Solder Retention feature, it is more powerful in many ways.The device is operating at -25°C~85°C Operating Temperature.
