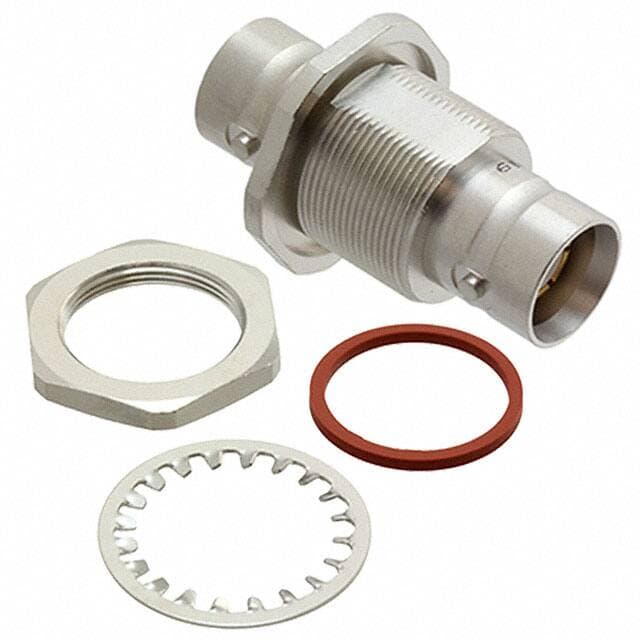

Cinch BJ88
Cinch BJ88

Cinch BJ88

Manufacturer No:

BJ88

Manufacturer:

Cinch

Package:

Axial

Description:

BJ88 COAX ADAPT TRC TO TRC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :1000

Price not displayed? Please send an RFQ, and we will respond immediately.

BJ88 information

Cinch BJ88 technical specifications, attributes, parameters and parts with similar specifications to Cinch BJ88.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Copper
  • Mount
  • Bulkhead, Panel
  • Mounting Type
  • Panel Mount
  • Package / Case
  • Axial
  • Mounting Feature
  • Bulkhead
  • Insulation Material
  • POLYTETRAFLUORO ETHYLENE
  • Body Material
  • Brass
  • Center Contact Plating
  • Gold
  • Packaging
  • Bulk
  • Series
  • 80
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Crimp
  • ECCN Code
  • EAR99
  • Connector Type
  • Coaxial
  • Max Operating Temperature
  • 165°C
  • Min Operating Temperature
  • -65°C
  • Gender
  • Female
  • Fastening Type
  • Bayonet Lock, Bayonet Lock
  • Voltage - Rated DC
  • 400V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Option
  • GENERAL PURPOSE
  • Style
  • Straight
  • Frequency
  • 500MHz
  • Polarity
  • Standard
  • Insulation Resistance
  • 5GOhm
  • Includes
  • 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
  • Body Finish
  • Nickel
  • Convert From (Adapter End)
  • TRC Twinaxial/Triaxial (Concentric) Jack, Male Pin
  • Convert To (Adapter End)
  • TRC Twinaxial/Triaxial (Concentric) Jack, Male Pin
  • Conversion Type
  • Same Series
  • Adapter Type
  • Jack to Jack
  • Center Gender
  • Male to Male
  • Adapter Series
  • TRC Twinaxial/Triaxial to TRC Twinaxial/Triaxial
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Cinch BJ88.

Type
Description
Select All
Category
Connectors, Interconnects
Coaxial Connectors (RF)
Coaxial Connector (RF) Adapters
Mfr
Cinch Connectivity Solutions Trompeter
Series
80
Packaging
Bulk
Part Status
Active
Adapter Type
Jack to Jack
Conversion Type
Same Series
Adapter Series
TRC Twinaxial/Triaxial to TRC Twinaxial/Triaxial
Center Gender
Male to Male
Convert From (Adapter End)
TRC Twinaxial/Triaxial (Concentric) Jack, Male Pin
Convert To (Adapter End)
TRC Twinaxial/Triaxial (Concentric) Jack, Male Pin
Impedance
-
Style
Straight
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Fastening Type
Bayonet Lock, Bayonet Lock
Frequency - Max
500 MHz
Ingress Protection
-
Center Contact Plating
Gold
Features
-
Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material
Brass
Body Finish
Nickel
Center Contact Material
-
Dielectric Material
-
Mating Cycles
-
Insertion Loss
-
Operating Temperature
-
Base Product Number
-





User Guide
