INFINEON BGS13SL9E6327XTSA1
INFINEON BGS13SL9E6327XTSA1

INFINEON BGS13SL9E6327XTSA1

Manufacturer No:

BGS13SL9E6327XTSA1

Manufacturer:

INFINEON

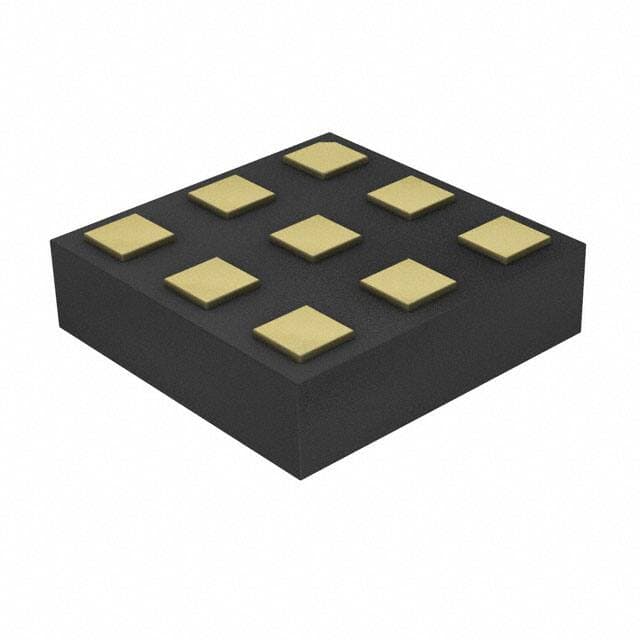

Package:

9-XFLGA

Description:

Bluetooth, WLAN RF Type SP3T -30°C~85°C 100MHz~3GHz Isolation:22dB Insertion Loss:0.54dB Reflective 50Ohm 2.4V~3.6V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BGS13SL9E6327XTSA1 information

INFINEON BGS13SL9E6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BGS13SL9E6327XTSA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • 9-XFLGA
  • Number of Pins
  • 6
  • Supplier Device Package
  • TSLP-9-3
  • Operating Temperature
  • -30°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2014
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Voltage - Supply
  • 2.4V~3.6V
  • Frequency
  • 3GHz
  • Operating Supply Voltage
  • 3V
  • Circuit
  • SP3T
  • Max Supply Voltage
  • 3.6V
  • Min Supply Voltage
  • 2.3V
  • Test Frequency
  • 2.7GHz
  • Operating Supply Current
  • 140?A
  • Impedance
  • 50Ohm
  • Throw Configuration
  • SP3T
  • Topology
  • Reflective
  • Frequency Range
  • 100MHz~3GHz
  • Isolation
  • 22dB
  • Insertion Loss (dB)
  • 0.35 dB
  • RF Type
  • Bluetooth, WLAN
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON BGS13SL9E6327XTSA1.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

BGS13SL9E6327XTSA1 Overview


optimized performance is achieved by utilizing the Tape & Reel (TR) package in this RF Switch.During RF Switch operation, the operating temperature should remain at -30°C~85°C.There are 6 pins used for high power RF switch operation.RF switch ic operating on 140?A supply voltage.Input RF type Bluetooth, WLAN of the RF switch ic.It is possible to supply 2.4V~3.6V volts to the RF Switch.

BGS13SL9E6327XTSA1 Features


Tape & Reel (TR) package
6 pins
Bluetooth, WLAN RF Type


BGS13SL9E6327XTSA1 Applications


There are a lot of Infineon Technologies
BGS13SL9E6327XTSA1 RF Switches applications.


  • Cellular/PCS Base Stations
  • ISM
  • Wireless Local Loop
  • Smartphones
  • Tablets
  • Mobile devices
  • Smart metering
  • Cellular infrastructures
  • LTE diversity applications
  • WCDMA diversity applications
