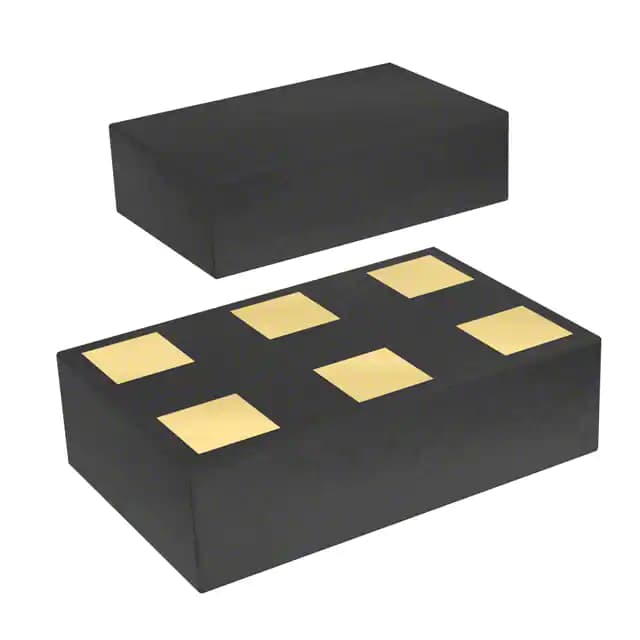

INFINEON BGS12SL6E6327XTSA1
INFINEON BGS12SL6E6327XTSA1

INFINEON BGS12SL6E6327XTSA1

Manufacturer No:

BGS12SL6E6327XTSA1

Manufacturer:

INFINEON

Package:

6-XFDFN

Description:

GSM, LTE, W-CDMA RF Type SPDT -30°C~85°C 100MHz~6GHz Isolation:15dB Insertion Loss:1.5dB Reflective 50Ohm 2.4V~3.6V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BGS12SL6E6327XTSA1 information

INFINEON BGS12SL6E6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BGS12SL6E6327XTSA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • 6-XFDFN
  • Number of Pins
  • 6
  • Operating Temperature
  • -30°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • Feature
  • Single Line Control
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • HTS Code
  • 8542.39.00.01
  • Voltage - Supply
  • 2.4V~3.6V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BUTT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 0.4mm
  • Frequency
  • 6GHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Operating Supply Voltage
  • 3V
  • Circuit
  • SPDT
  • Operating Supply Current
  • 150?A
  • Topology
  • Reflective
  • Frequency Range
  • 100MHz~6GHz
  • Insertion Loss
  • 1.5dB
  • Telecom IC Type
  • TELECOM CIRCUIT
  • Isolation
  • 15dB
  • Insertion Loss (dB)
  • 0.25 dB
  • RF Type
  • GSM, LTE, W-CDMA
  • Length
  • 1.1mm
  • Height Seated (Max)
  • 0.32mm
  • Width
  • 0.7mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON BGS12SL6E6327XTSA1.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

BGS12SL6E6327XTSA1 Overview


For optimal performance, this RF Switch makes use of the Tape & Reel (TR) package.In this RF Switch, there are a total of 6 terminations.The operating temperature should be kept at -30°C~85°C when the RF Switch is in operation.There are 6 pins that are used for the operation of the high power RF switch.A supply current of 150?Amps is required to operate this RF switch ic.GSM, LTE, W-CDMA RF Type from the RF switch ic.2.4V~3.6V voltage can be supplied by the RF Switch.

BGS12SL6E6327XTSA1 Features


Tape & Reel (TR) package
6 terminations
6 pins
GSM, LTE, W-CDMA RF Type


BGS12SL6E6327XTSA1 Applications


There are a lot of Infineon Technologies
BGS12SL6E6327XTSA1 RF Switches applications.


  • General-purpose RF switching
  • Dual-band applications
  • High speed filter selection
  • Digital transceiver front end switch
  • IF switching
  • Tuner modules
  • Antenna diversity switching
  • Cellular/PCS Base Stations
  • ISM
  • Wireless Local Loop
