INFINEON BGS12AL74E6327XTSA1
Manufacturer No:
BGS12AL74E6327XTSA1
Manufacturer:
Package:

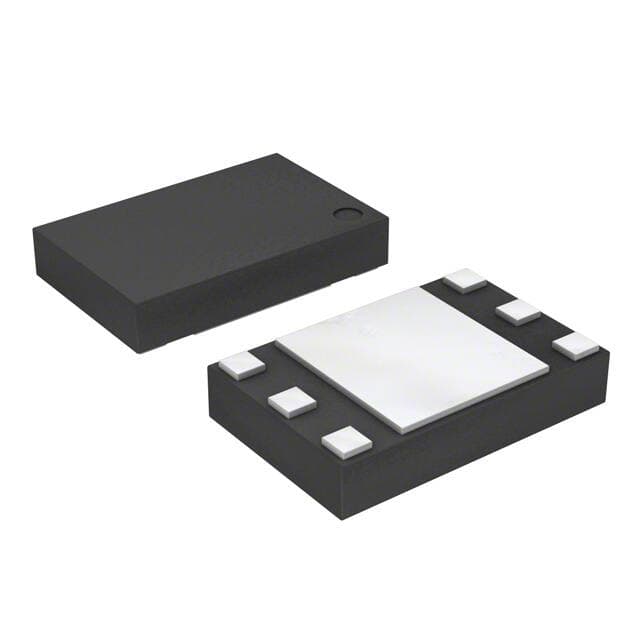

6-XFDFN Exposed Pad
Description:
General Purpose RF Type SPDT -30°C~85°C 30MHz~3GHz Isolation:25dB Insertion Loss:0.5dB Reflective 50Ohm 2.4V~3.6V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
BGS12AL74E6327XTSA1 information
INFINEON BGS12AL74E6327XTSA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BGS12AL74E6327XTSA1.
- Type
- Parameter
- Factory Lead Time
- 4 Weeks
- Contact Plating
- Gold
- Mount
- Surface Mount
- Package / Case
- 6-XFDFN Exposed Pad
- Number of Pins
- 6
- Operating Temperature
- -30°C~85°C
- Packaging
- Tape & Reel (TR)
- Published
- 2009
- JESD-609 Code
- e4
- Feature
- DC Blocked, Single Line Control
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- HTS Code
- 8542.39.00.01
- Voltage - Supply
- 2.4V~3.6V
- Terminal Position
- BOTTOM
- Terminal Form
- BUTT
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Supply Voltage
- 2.8V
- Terminal Pitch
- 0.55mm
- Frequency
- 3GHz
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Operating Supply Voltage
- 2.8V
- Test Frequency
- 2GHz
- Impedance
- 50Ohm
- Topology
- Reflective
- Halogen Free
- Halogen Free
- Frequency Range
- 30MHz~3GHz
- Insertion Loss
- 0.5dB
- Telecom IC Type
- TELECOM CIRCUIT
- Isolation
- 25dB
- Insertion Loss (dB)
- 0.4 dB
- RF Type
- General Purpose
- Length
- 2.3mm
- Height Seated (Max)
- 0.5mm
- Width
- 1.5mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for INFINEON BGS12AL74E6327XTSA1.
Other Related Documents:
ConflictMineralStatement:
BGS12AL74E6327XTSA1 Overview
It is designed to provide optimal performance by utilizing the Tape & Reel (TR) package.There are 6 terminations in this RF Switch.-30°C~85°C should be the operating temperature when RF Switch is operating.The high power RF switch operation of the system is controlled by 6 pins.The RF switch ic type is General Purpose.It is possible for the RF Switch to supply voltages of 2.4V~3.6V.
BGS12AL74E6327XTSA1 Features
Tape & Reel (TR) package
6 terminations
6 pins
General Purpose RF Type
BGS12AL74E6327XTSA1 Applications
There are a lot of Infineon Technologies
BGS12AL74E6327XTSA1 RF Switches applications.
- Digital transceiver front end switch
- IF switching
- Tuner modules
- Antenna diversity switching
- Cellular/PCS Base Stations
- ISM
- Wireless Local Loop
- Smartphones
- Tablets
- Mobile devices
