INFINEON BGM1032N7E6327XUSA1
INFINEON BGM1032N7E6327XUSA1

INFINEON BGM1032N7E6327XUSA1

Manufacturer No:

BGM1032N7E6327XUSA1

Manufacturer:

INFINEON

Package:

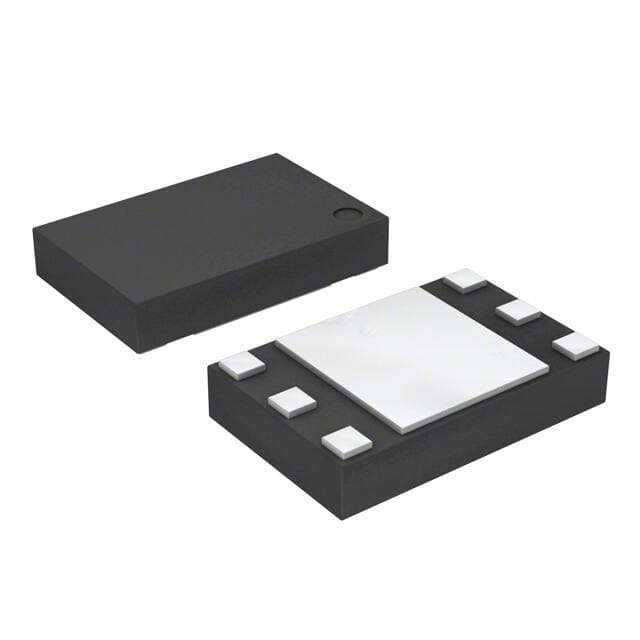

6-WDFN Exposed Pad

Description:

Surface Mount 6-WDFN Exposed Pad Tape & Reel (TR) GPS Front End 1575.42MHz GPS 7 Pins 6 Terminations 2.3mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BGM1032N7E6327XUSA1 information

INFINEON BGM1032N7E6327XUSA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BGM1032N7E6327XUSA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Silver, Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-WDFN Exposed Pad
  • Number of Pins
  • 7
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2011
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 6
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • HTS Code
  • 8542.39.00.01
  • Max Power Dissipation
  • 90mW
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 2.7V
  • Terminal Pitch
  • 0.54mm
  • Frequency
  • 1575.42MHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • R-PDSO-N6
  • Function
  • GPS Front End
  • Max Supply Voltage
  • 3.6V
  • Halogen Free
  • Halogen Free
  • Gain
  • 14.8 dB
  • Telecom IC Type
  • TELECOM CIRCUIT
  • RF Type
  • GPS
  • Length
  • 2.3mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for INFINEON BGM1032N7E6327XUSA1.

Other Related Documents:

PCN Obsolescence/ EOL:

ConflictMineralStatement:

BGM1032N7E6327XUSA1 Overview


RF modulator operates on the basis of the frequency of 1575.42MHz.This RF IC is excellent due to its enhanced 6-WDFN Exposed Pad package.The package of this RF modulator is Tape & Reel (TR).On any Surface Mount-type PCB or development board, you can install this RF modulator.RF module has 6 terminations built in for driving or receiving signals from data.7-pin RF module with improved power dissipation control.It must be below 85°C when the RF switch IC's system is operating.This RF switch IC must be able to operate at a minimum of -40°C degrees Celsius during normal operation.

BGM1032N7E6327XUSA1 Features


Frequency of 1575.42MHz
6-WDFN Exposed Pad package
Tape & Reel (TR)
6 terminations
7 pins


BGM1032N7E6327XUSA1 Applications


There are a lot of Infineon Technologies
BGM1032N7E6327XUSA1 RF Misc ICs and Modules applications.


  • Variable matched attenuator
  • Phase shifter
  • Cellular base stations
  • Radio links
  • Fixed wireless access
  • Broadband/CATV
  • RF/IF analog multiplexer
  • Balanced modulation
  • Demodulation
  • Synchronous detection
