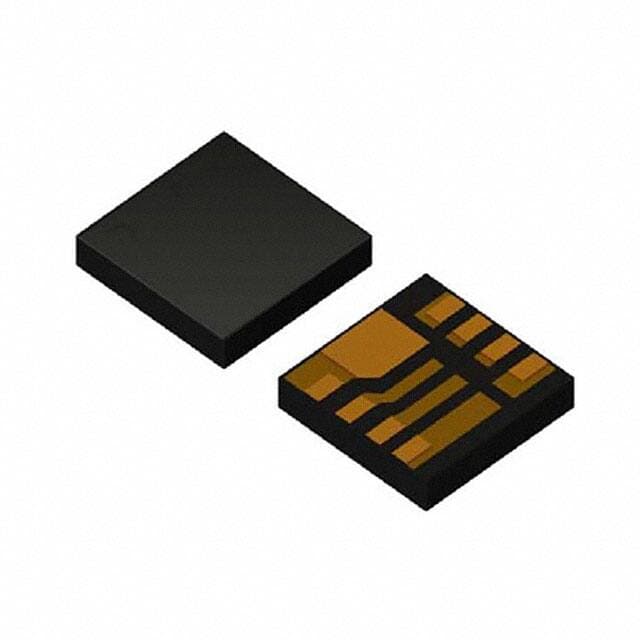

ROHM BD9D323QWZ-E2

Manufacturer No:

BD9D323QWZ-E2

Manufacturer:

ROHM

Package:

8-XFDFN Exposed Pad

Description:

4.5V DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 700kHz Cut Tape (CT) 3A 8-XFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD9D323QWZ-E2 information

ROHM BD9D323QWZ-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD9D323QWZ-E2.

Type
Parameter

Factory Lead Time
17 Weeks

Mounting Type
Surface Mount

Package / Case
8-XFDFN Exposed Pad

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
18V

Output Voltage
7V

Output Type
Adjustable

Voltage - Input (Min)
4.5V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
3A

Voltage - Output (Min/Fixed)
0.765V

Topology
Buck

Frequency - Switching
700kHz

Synchronous Rectifier
Yes

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD9D323QWZ-E2.

Datasheets:

rohmsemiconductor-bd9d323qwze2-datasheets-3649.pdf

BD9D323QWZ-E2 Overview

It is designed to provide optimal performance by utilizing the Cut Tape (CT) package. A SWITCHING REGULATOR type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. For space-saving purposes, this voltage regulator is available in the 8-XFDFN Exposed Pad package. 1 outputs of voltage regulator are configured. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. As long as its operating temperature is -40°C~85°C TA, dc to dc voltage regulator should perform well. Voltage regulator's switching frequency reaches 700kHz. The voltage regulator can be operated with a voltage as low as 4.5V as an input voltage. There is a adjusting voltage regulator's voltage output (Min/Fixed) of 0.765V. This voltage regulator 12v features maximum design flexibility thanks to its 3A output current. There is a voltage regulator maximum input voltage of 18V. Its NOT SPECIFIED peak reflow temperature makes this regulator essentially indestructible. Voltage regulator is capable of giving voltage at 7V volts.
