ROHM BD9011EKN-E2

Manufacturer No:

BD9011EKN-E2

Manufacturer:

ROHM

Package:

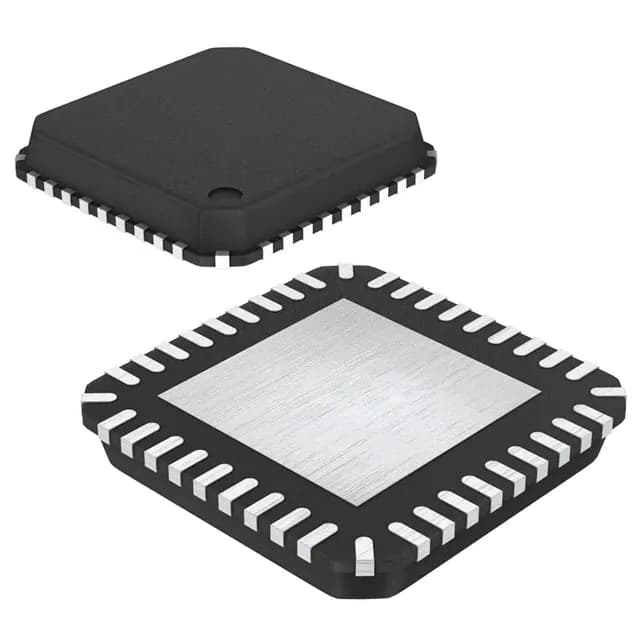

36-VFQFN Exposed Pad

Description:

36 Terminals 3.9V~30V 36-Pin BD901* DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD9011EKN-E2 information

ROHM BD9011EKN-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD9011EKN-E2.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
36-VFQFN Exposed Pad

Surface Mount
YES

Number of Pins
36

Operating Temperature
-40°C~105°C TA

Packaging
Tape & Reel (TR)

Published
2008

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
36

Termination
SMD/SMT

ECCN Code
EAR99

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Reach Compliance Code
unknown

Frequency
300kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
BD901*

Function
Step-Down

Number of Outputs
2

Output Voltage
5V

Output Type
Transistor Driver

Input Voltage-Nom
12V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
Positive

Output Current
10mA

Voltage - Supply (Vcc/Vdd)
3.9V~30V

Control Features
Enable, Frequency Control, Soft Start

Topology
Buck

Control Mode
VOLTAGE-MODE

Max Input Voltage
30V

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
PHASE-SHIFT

Output Phases
1

Height Seated (Max)
0.95mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BD9011EKN-E2.

Datasheets:

rohmsemiconductor-bd9775fve2-datasheets-2133.pdf

BD9011EKN-E2 Overview

The switching controller fits in the 36-VFQFN Exposed Pad package and is ideal for most applications. dc motor controller is suitable for 2 output generation. Packaged in solid enclosures, this pmic has a Tape & Reel (TR) rating. There are Transistor Driver dc switching's output (s) that it can handle. A 3.9V~30V voltage is supplied to the dc control and used for operating it. Suitable for work in a -40°C~105°C TA dc switcher. The Surface Mount makes it ideal for general dc dc regulator. Featured in the dcdc regulator is Enable, Frequency Control, Soft Start which allows efficient switching control. Thare switch converters are connected to an analog integrated circuit (IC) of type DUAL SWITCHING CONTROLLER. There are a terminal (s) on the switching converters that are designed at QUAD. 36 terminations with various dc switching's functions. PULSE WIDTH MODULATION is an example of one of the control techniques these dc dc converter ics adapt. The DC switcher's nominal voltage is 12V. Other relevant dc to dc converter ics will be returned if you search "BD901*". Total pins of switching converter are 36. Particularly, switching converter is a type of Switching Regulator or Controllers. A 5V voltage of DC regulator was detected in the test statistics. If you start a project, note down the dc dc regulator's usual output current of 10mA. There is 300kHz frequency setting on the switching controller. The maximum input voltage of this dc switcher is 30V, so users must limit the voltage accordingly.

BD9011EKN-E2 Features

Transistor Driver Outputs
Enable, Frequency Control, Soft Start
PULSE WIDTH MODULATION
Frequency: 300kHz

BD9011EKN-E2 Applications

There are a lot of ROHM Semiconductor
BD9011EKN-E2 DC to DC converter applications.

CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
Various CNC machine tools
