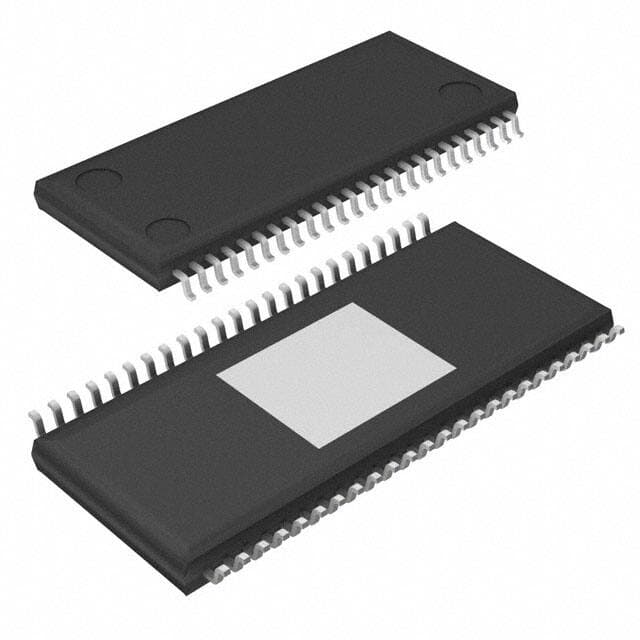

ROHM BD8256EFV-ME2

Manufacturer No:

BD8256EFV-ME2

Manufacturer:

ROHM

Package:

54-VSSOP (0.295, 7.50mm Width) Exposed Pad

Description:

7.5mm mm Motor Drivers 54 8V V 18.5mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD8256EFV-ME2 information

ROHM BD8256EFV-ME2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD8256EFV-ME2.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
54-VSSOP (0.295, 7.50mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~90°C TA

Packaging
Cut Tape (CT)

Series
Automotive, AEC-Q100

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
54

Applications
Media Player

HTS Code
8542.39.00.01

Technology
Power MOSFET

Voltage - Supply
4.5V~10.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
8V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G54

Function
Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)
10.5V

Supply Voltage-Min (Vsup)
4.5V

Analog IC - Other Type
DISK DRIVE MOTOR CONTROLLER

Output Configuration
Half Bridge (17)

Voltage - Load
4.5V~10.5V

Motor Type - AC, DC
Brushed DC

Length
18.5mm

Height Seated (Max)
1mm

Width
7.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD8256EFV-ME2.

BD8256EFV-ME2 Overview

Drivers controllers includes a Cut Tape (CT)package.Drivers controllers comes in a 54-VSSOP (0.295, 7.50mm Width) Exposed Pad case.Surface Mountshould be used for mounting the part.The component connected in Media Playermatches it perfectly.Drivers controllers is capable of supplying 4.5V~10.5V volts.There is a temperature range of -40°C~90°C TAin which this device operates.There is a motor type Brushed DCassociated with this motor type.There are 54 terminations available on this part.You can apply voltage at 4.5V~10.5Vto the load.In order to get the best performance from this amplifier, it should be run at 8V.A DISK DRIVE MOTOR CONTROLLERanalog integrated circuit is employed in this device.Keeps the output voltage at Automotive, AEC-Q100at all times.

BD8256EFV-ME2 Features

Applications : Media Player
Load voltage across the chip 4.5V~10.5V

BD8256EFV-ME2 Applications

There are a lot of ROHM Semiconductor
BD8256EFV-ME2 motor drivers applications.

Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
Turn signals
Brake lights
CHMSL (center high-mount stop lamps)
parking lights
Side marker lights
