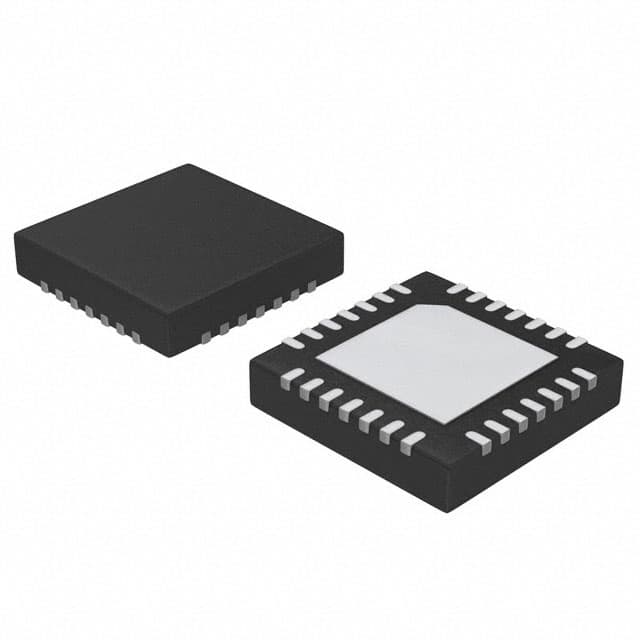

ROHM BD63920MUV-E2

Manufacturer No:

BD63920MUV-E2

Manufacturer:

ROHM

Package:

28-VQFN Exposed Pad

Description:

5mm mm Motor Drivers 28 24V V 5mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD63920MUV-E2 information

ROHM BD63920MUV-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD63920MUV-E2.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
28-VQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-25°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Applications
Camera, Printer

Technology
DMOS

Voltage - Supply
8V~28V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
24V

Terminal Pitch
0.5mm

Reach Compliance Code
compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-XQCC-N28

Function
Driver

Supply Voltage-Min (Vsup)
8V

Interface
Parallel

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Current - Output
2A

Motor Type - Stepper
Bipolar

Step Resolution
1, 1/2, 1/4, 1/8, 1/16

Length
5mm

Height Seated (Max)
1.05mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD63920MUV-E2.

Datasheets:

rohmsemiconductor-bd63920muve2-datasheets-9340.pdf

BD63920MUV-E2 Overview

The package is designed with [0].The part is packaged in a 28-VQFN Exposed Pad case.In general, it is recommended that the part be mounted by Surface Mount.The component connected in Camera, Printeris compatible with it.8V~28V volts can be supplied by the device.Drivers controllers operates wDrivers controllershin a range of -25°C~85°C TAdegrees Celsius.This part has 28termination options.This amplifier should be operated at 24V.Maintain a current of 2Afor the part output.A STEPPER MOTOR CONTROLLERanalog integrated circuit is used in the device.
