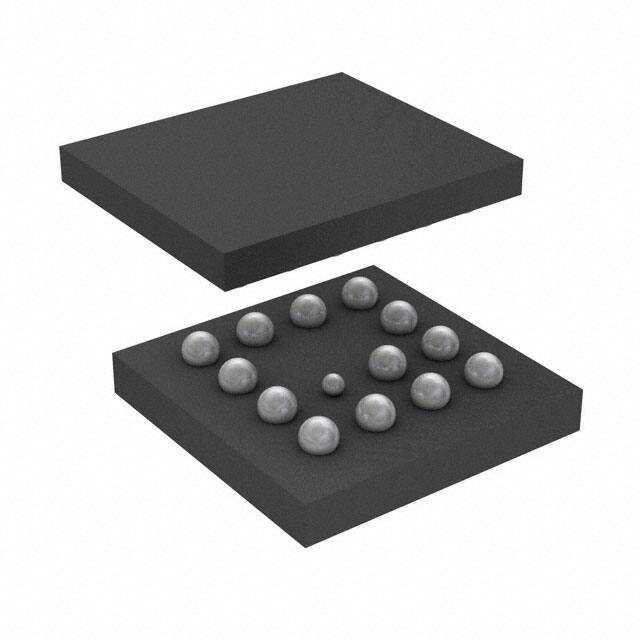

ROHM BD6046GUL-E2

Manufacturer No:

BD6046GUL-E2

Manufacturer:

ROHM

Package:

13-UFBGA, CSPBGA

Description:

13 Terminations 2.2V~28V BD6046 Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD6046GUL-E2 information

ROHM BD6046GUL-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD6046GUL-E2.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
13-UFBGA, CSPBGA

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2008

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
13

ECCN Code
EAR99

Applications
USB Overvoltage Protection Controller

Voltage - Supply
2.2V~28V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
BD6046

Pin Count
13

Qualification Status
Not Qualified

Threshold Voltage
28V

Undervoltage Threshold
3.6V

Overvoltage Threshold
6.7V

Interface IC Type
BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Turn On Time
5000 µs

Output Peak Current Limit-Nom
1.2A

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SOURCE

Number of Monitored Inputs
1

Length
2.5mm

Height Seated (Max)
0.55mm

Width
2.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD6046GUL-E2.

BD6046GUL-E2 Overview

It is acceptable to ship in the way of Tape & Reel (TR) .A convenient packaging is provided in the form of 13-UFBGA, CSPBGA .The Surface Mount mounting method allows for easy adaptation.It targets applications such as USB Overvoltage Protection Controller and others.It is recommended that the operating temperature of the power management ic be set to -40°C~85°C to prevent malfunctions.The power management operates at a voltage of 2.2V~28V volts.You can find more power ic's pin-to-pin solutions by searching BD6046 .The power management has 13 terminals.There is a Surface Mount for mounting on a PCB or other board.The power manager is supplied with 5V voltage and is capable of performing a wide range of demanding tasks.In this power ic, the pinout begins with 13 pins.Voltage 35?A is required to operate this power management ic.

BD6046GUL-E2 Features

Mainly used in USB Overvoltage Protection Controller applications
Operating temperature: -40°C~85°C

BD6046GUL-E2 Applications

There are a lot of ROHM Semiconductor
BD6046GUL-E2Power Management applications.

Netbooks
SmartPhones
Portable Navigation Devices
Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
