ROHM BD42754FP2-CE2

Manufacturer No:

BD42754FP2-CE2

Manufacturer:

ROHM

Package:

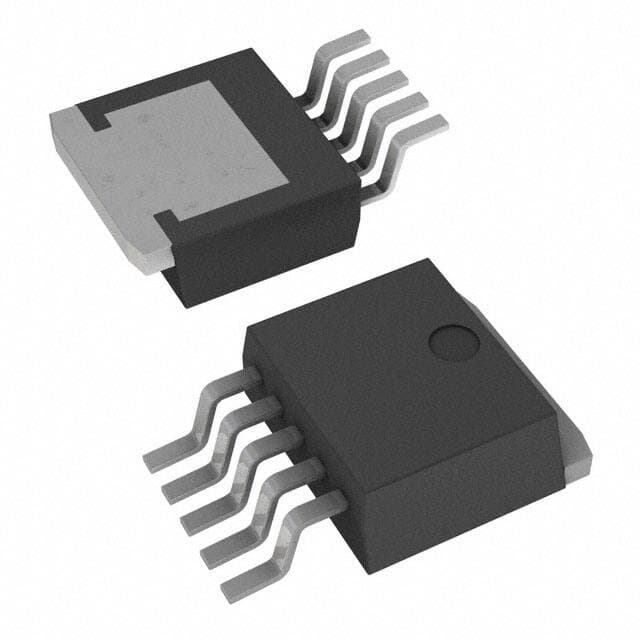

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Description:

Fixed PMIC Automotive, AEC-Q100 Series 13.5V TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD42754FP2-CE2 information

ROHM BD42754FP2-CE2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD42754FP2-CE2.

Type
Parameter

Factory Lead Time
9 Weeks

Mounting Type
Surface Mount

Package / Case
TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Surface Mount
YES

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
5

Additional Feature
SEATED HT-CALCULATED; IT CAN OPERATE AT 5.9V VCC MINIMUM

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
13.5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PSSO-G5

Voltage - Input (Max)
45V

Output Type
Fixed

Supply Voltage-Max (Vsup)
45V

Supply Voltage-Min (Vsup)
5.5V

Analog IC - Other Type
ANALOG CIRCUIT

Current - Output
500mA

Voltage - Output (Min/Fixed)
5V

Number of Regulators
1

Protection Features
Over Current, Thermal Shutdown, UVLO

Current - Quiescent (Iq)
150μA

Voltage Dropout (Max)
0.5V @ 300mA

PSRR
60dB (120Hz)

Height Seated (Max)
4.7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD42754FP2-CE2.

Datasheets:

rohmsemiconductor-bd42754fp2ce2-datasheets-6823.pdf

BD42754FP2-CE2 Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case is used. On the Voltage regulator IC, there are 5 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 500mA. The Automotive, AEC-Q100 Series is a series of products made by D-Link. An analog IC, ANALOG CIRCUIT, is used in this IC voltage regulator to provide analog signal processing.
