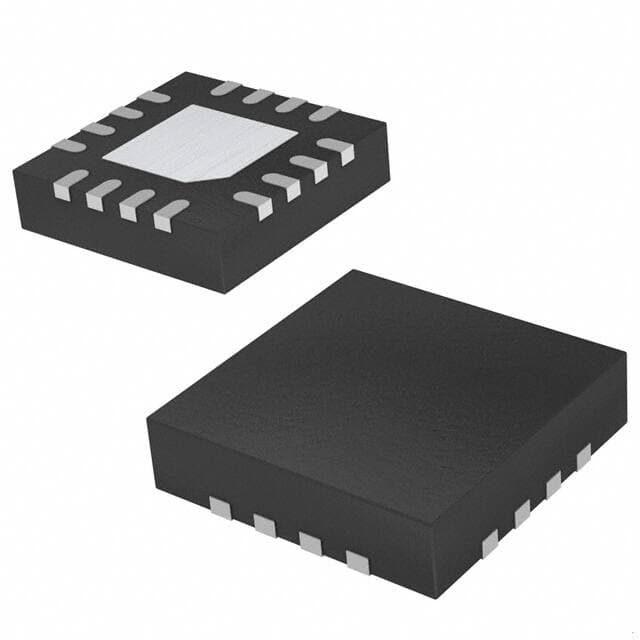

ROHM BD2606MVV-E2

Manufacturer No:

BD2606MVV-E2

Manufacturer:

ROHM

Package:

16-VQFN Exposed Pad

Description:

3/5V PMIC 1MHz 3.6V 16-VQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD2606MVV-E2 information

ROHM BD2606MVV-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD2606MVV-E2.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VQFN Exposed Pad

Operating Temperature
-30°C~85°C TA

Packaging
Cut Tape (CT)

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Type
DC DC Regulator

Applications
Backlight

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.6V

Frequency
1MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Number of Outputs
6

Qualification Status
Not Qualified

Power Supplies
3/5V

Max Supply Voltage
5.5V

Topology
Switched Capacitor (Charge Pump)

Output Current per Channel
20mA

Current - Output / Channel
20mA

Internal Switch(s)
Yes

fmax-Min
0.1 MHz

Dimming
I2C

Number of Segments
6

Voltage - Supply (Min)
2.7V

Multiplexed Display Capability
NO

Length
4mm

Height Seated (Max)
1mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD2606MVV-E2.

BD2606MVV-E2 Overview

Space is saved using its 16-VQFN Exposed Pad package. LED drivers have a total of 6 outputs that are used in the design of the drivers.The led light driver is mounted using Surface Mount.When it emerges as a DC DC Regulator, it performs extremely well and is highly reliable.It is capable of operating at a temperature of -30°C~85°C TA. Backlight provides many benefits.The frequency of 1MHz is used as the basis for its operation.In this case, it uses 16 terminations.The voltage supply can fail if it is below 2.7V.There are estimated to be 6 segments.There is a device mounted on the Surface Mount.In this case, 5.5V is acceptable.Further, it can be classified as Display Drivers based on its characteristics.This device produces a voltage of 4.7V as its output.

BD2606MVV-E2 Features

Available in the 16-VQFN Exposed Pad package
Operating temperature of -30°C~85°C TA
Frequency of 1MHz
Supply voltage of 3.6V
Output voltage of 4.7V

BD2606MVV-E2 Applications

There are a lot of ROHM Semiconductor
BD2606MVV-E2 LED Driver ICs applications.

Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
Down lights
Linear fluorescent
A- lamps
General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
