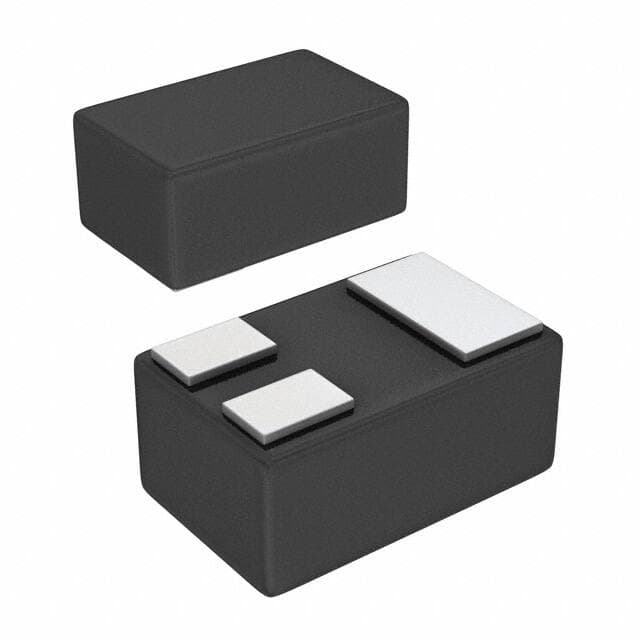

DIODES BC857BLP-7B
DIODES BC857BLP-7B

DIODES BC857BLP-7B

Manufacturer No:

BC857BLP-7B

Manufacturer:

DIODES

Package:

3-UFDFN

Description:

PNP -55°C~150°C TJ 15nA ICBO 1 Elements 3 Terminations SILICON PNP 3-UFDFN Tape & Reel (TR) Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BC857BLP-7B information

DIODES BC857BLP-7B technical specifications, attributes, parameters and parts with similar specifications to DIODES BC857BLP-7B.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Contact Plating
  • Gold
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 3-UFDFN
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2011
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Additional Feature
  • HIGH RELIABILITY
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 250mW
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • BC857BLP
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Case Connection
  • COLLECTOR
  • Power - Max
  • 250mW
  • Gain Bandwidth Product
  • 100MHz
  • Polarity/Channel Type
  • PNP
  • Transistor Type
  • PNP
  • Collector Emitter Voltage (VCEO)
  • 650mV
  • Max Collector Current
  • 100mA
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 220 @ 2mA 5V
  • Current - Collector Cutoff (Max)
  • 15nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 650mV @ 5mA, 100mA
  • Collector Emitter Breakdown Voltage
  • 45V
  • Transition Frequency
  • 100MHz
  • Collector Emitter Saturation Voltage
  • -650mV
  • Max Breakdown Voltage
  • 45V
  • Collector Base Voltage (VCBO)
  • -50V
  • Emitter Base Voltage (VEBO)
  • -5V
  • Continuous Collector Current
  • -100mA
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for DIODES BC857BLP-7B.

Environmental Information:

BC857BLP-7B Overview


The DC current gain is the ratio of the base current to the collector current ?dc = Ic/Ib and the DC current gain for this device is 220 @ 2mA 5V.With a collector emitter saturation voltage of -650mV, it offers maximum design flexibility.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 650mV @ 5mA, 100mA.In order to achieve high efficiency, the continuous collector voltage should be kept at -100mA.If the emitter base voltage is kept at -5V, a high level of efficiency can be achieved.A transition frequency of 100MHz is present in the part.There is a breakdown input voltage of 45V volts that it can take.Collector current can be as low as 100mA volts at its maximum.

BC857BLP-7B Features


the DC current gain for this device is 220 @ 2mA 5V
a collector emitter saturation voltage of -650mV
the vce saturation(Max) is 650mV @ 5mA, 100mA
the emitter base voltage is kept at -5V
a transition frequency of 100MHz


BC857BLP-7B Applications


There are a lot of Diodes Incorporated
BC857BLP-7B applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
