NKK Switches BB15AH

Manufacturer No:

BB15AH

Manufacturer:

Package:

Description:

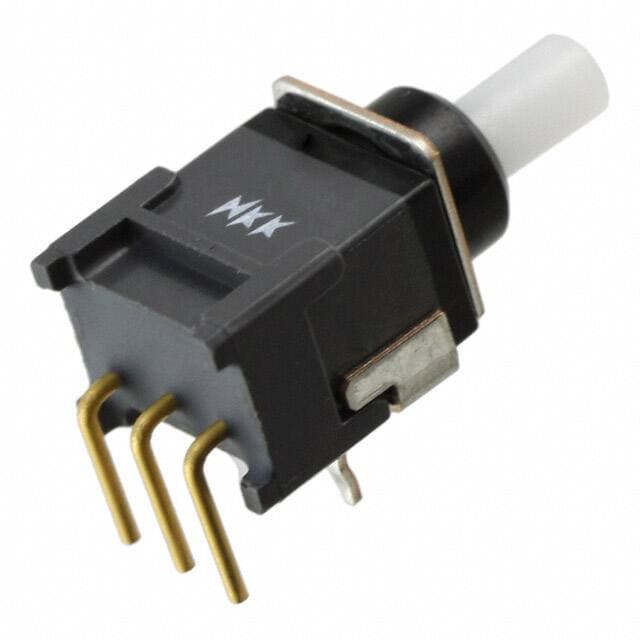

Process Sealed Subminiature Antistatic Pushbutton; Poles: SPDT; Circuits: On-Mom; Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Plunger for Cap; Actuator Cap Color: White; Mounting Type: Through Hole, Right Angle; Termination Style: PC Pin; Features: Antistatic; Rating: 0.4; Illumination: Non-Illuminated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BB15AH information

NKK Switches BB15AH technical specifications, attributes, parameters and parts with similar specifications to NKK Switches BB15AH.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
NKK SWITCHES CO LTD

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.50.70.00

Samacsys Manufacturer
NKK Switches

Actuator Color
WHITE

Actuator Length
0.213 inch

Actuator Material
POLYACETAL

Actuator Travel
1.0922 mm

Actuator Type
PUSHBUTTON

Body Breadth
7.2898 mm

Body Height
19.5834 mm

Body Length or Diameter
8.7884 mm

Bushing Diameter
0.236 inch

Bushing Length
0.106 inch

Bushing Type
UNTHREADED

Center Contact Material
PHOSPHOR BRONZE

Center Contact Plating
GOLD OVER SILVER

Contact (DC) Max Power Rating R Load
0.4VA@28VDC

Contact Function
ON-(ON)

Contact Resistance
0.05 mΩ

Electrical Life
50000 Cycle(s)

End Contact Material
BRASS

End Contact Plating
GOLD OVER NICKEL

Illumination
NON-ILLUMINATED

Insulation Resistance
500000000 Ω

Insulator Material
GLASS FILLED POLYAMIDE

JESD-609 Code
e4

Mounting Feature
THROUGH HOLE-RIGHT ANGLE

Operating Temperature-Max
70 °C

Operating Temperature-Min
-25 °C

PCB Hole Count
5

Surface Mount
NO

Switch Action
MOMENTARY

Switch Function
SPDT

Switch Type
PUSHBUTTON SWITCH

Terminal Finish
GOLD

Terminal Length
0.122 inch

Terminal Material
BRASS

Termination Type
SOLDER

Washability
SOLVENT
