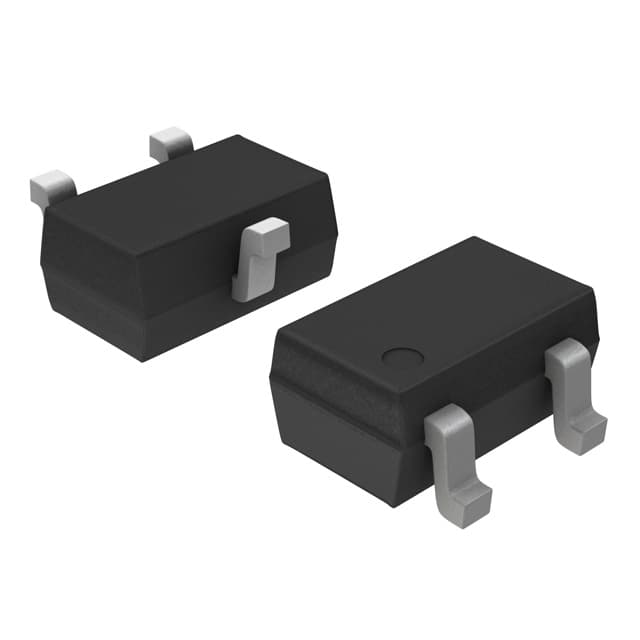

ONSEMI BAT54CWT1G

Manufacturer No:

BAT54CWT1G

Manufacturer:

ONSEMI

Package:

SC-70, SOT-323

Description:

200 mA, 30 V, Dual Schottky Diode, Common Cathode

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAT54CWT1G information

ONSEMI BAT54CWT1G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI BAT54CWT1G.

Type
Parameter

MSL Type
1

Container Type
REEL

IO(rec) Max (A)
0.2

trr Max (ns)
5

Case Outline
419-04

Configuration
Common Cathode

VRRM Min (V)
30

Cj Max (pF)
10

MSL Temp (°C)
260

Container Qty.
3000

VF Max (V)
0.32

IRM Max (µA)
2

IFSM Max (A)
0.6

Package Type
SC-70-3 / SOT-323-3

Download datasheets and manufacturer documentation for ONSEMI BAT54CWT1G.

Datasheet:

f3c7a4b8e8c5592a881e44a102eba211.pdf

Package Drawing:

1414d7193801fb3e6d731ac5f2818498.pdf

The Common Cathode Schottky Diode is designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.

Application

Portable applications where space is limited

Feature

Extremely Fast Switching Speed
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC Qualified and PPAP Capable
These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
