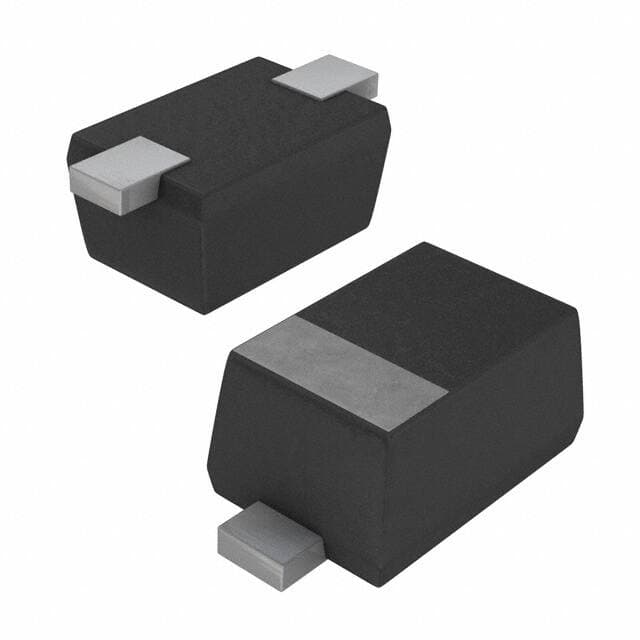

VISHAY BAT54-02V-V-G-08

Manufacturer No:

BAT54-02V-V-G-08

Manufacturer:

VISHAY

Package:

SC-79, SOD-523

Description:

Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 800mV @ 100mA 125°C Max 2?A @ 25V 2-Termination Tape & Reel (TR) SC-79, SOD-523 Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAT54-02V-V-G-08 information

VISHAY BAT54-02V-V-G-08 technical specifications, attributes, parameters and parts with similar specifications to VISHAY BAT54-02V-V-G-08.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-79, SOD-523

Number of Pins
2

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
125°C

Min Operating Temperature
-65°C

HTS Code
8541.10.00.70

Capacitance
10pF

Subcategory
Rectifier Diodes

Max Power Dissipation
150mW

Terminal Position
DUAL

Terminal Form
FLAT

Base Part Number
BAT54-02

Pin Count
2

Number of Elements
1

Speed
Small Signal =< 200mA (Io), Any Speed

Diode Type
Schottky

Current - Reverse Leakage @ Vr
2?A @ 25V

Voltage - Forward (Vf) (Max) @ If
800mV @ 100mA

Forward Current
200mA

Operating Temperature - Junction
125°C Max

Forward Voltage
800mV

Max Reverse Voltage (DC)
30V

Average Rectified Current
200mA

Reverse Recovery Time
5 ns

Peak Reverse Current
2?A

Max Repetitive Reverse Voltage (Vrrm)
30V

Capacitance @ Vr, F
10pF @ 1V 1MHz

Peak Non-Repetitive Surge Current
600mA

Reverse Voltage
30V

Max Forward Surge Current (Ifsm)
600mA

Max Junction Temperature (Tj)
125°C

Height
700?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY BAT54-02V-V-G-08.

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

BAT54-02V-V-G-08 Overview

Reverse voltages of 30V are reasonable.A rectified current of 200mA volts is averaged for this device.A value of 200mA is the maximum forward current that can be allowed.In terms of energy loss, electronic or electrical devices produce the least amount of 150mW heat (energy).A device that has a capacitance of 10pF can provide a value of 10pF.As indicated by the data chart in the datasheets, the peak reverse is 2?A.

BAT54-02V-V-G-08 Features

an average rectified current of 200mA volts
the least amount of 150mW heat (energy loss)
the peak reverse is 2?A

BAT54-02V-V-G-08 Applications

There are a lot of Vishay Semiconductor Diodes Division
BAT54-02V-V-G-08 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
