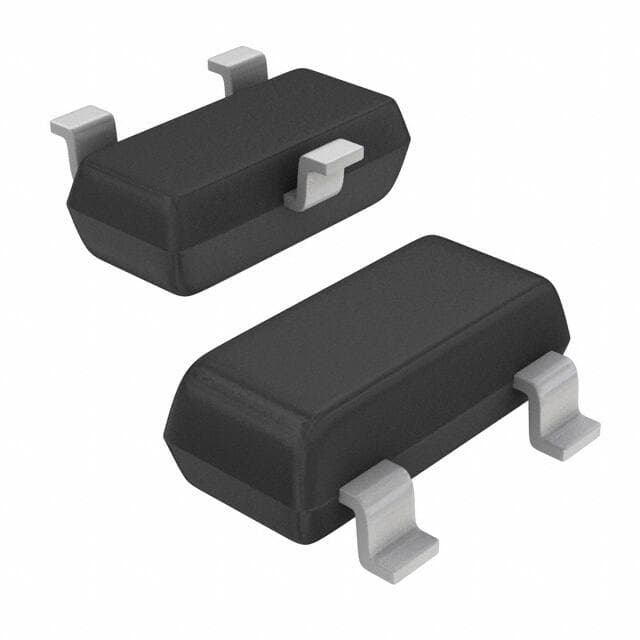

ROHM Semiconductor BAS16HMT116

Manufacturer No:

BAS16HMT116

Manufacturer:

ROHM Semiconductor

Package:

TO-236-3, SC-59, SOT-23-3

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.25V @ 150mA 150°C Max 500nA @ 80V 3-Termination Tape & Reel (TR) TO-236-3, SC-59, SOT-23-3 Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAS16HMT116 information

ROHM Semiconductor BAS16HMT116 technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor BAS16HMT116.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
TO-236-3, SC-59, SOT-23-3

Surface Mount
YES

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Additional Feature
HIGH RELIABILITY

HTS Code
8541.10.00.70

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G3

Operating Temperature (Max)
150°C

Number of Elements
1

Configuration
SINGLE

Power Dissipation-Max
0.25W

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Standard

Voltage - Forward (Vf) (Max) @ If
1.25V @ 150mA

Operating Temperature - Junction
150°C Max

Output Current-Max
0.215A

Voltage - DC Reverse (Vr) (Max)
80V

Current - Average Rectified (Io)
215mA DC

Reverse Recovery Time
4ns

Rep Pk Reverse Voltage-Max
100V

Capacitance @ Vr, F
2pF @ 0V 1MHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM Semiconductor BAS16HMT116.

Datasheets:

rohmsemiconductor-bas16hmt116-datasheets-8138.pdf

BAS16HMT116 Overview

Output current is maximal at 0.215A.

BAS16HMT116 Features

0.215A is the maximum value

BAS16HMT116 Applications

There are a lot of ROHM Semiconductor
BAS16HMT116 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
