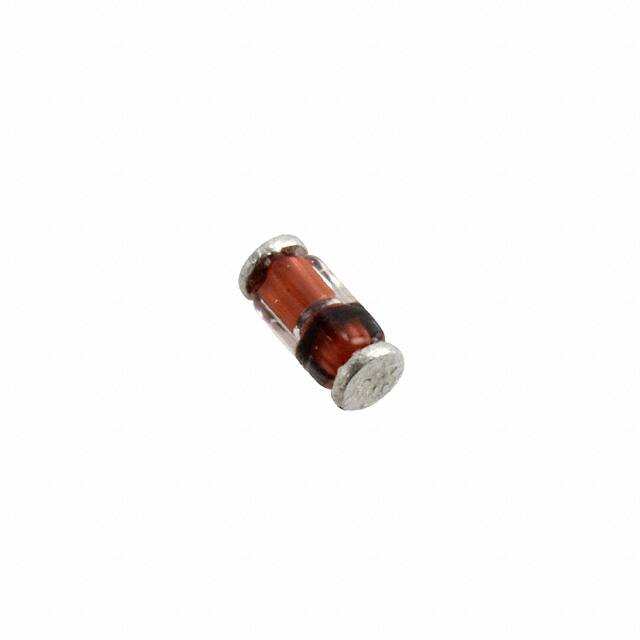

Manufacturer No:

BAQ135-GS08

Manufacturer:

VISHAY

Package:

SOD-80 Variant

Description:

Standard Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1V @ 100mA -65°C~175°C 1nA @ 60V 2-Termination Tape & Reel (TR) SOD-80 Variant Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAQ135-GS08 information

VISHAY BAQ135-GS08 technical specifications, attributes, parameters and parts with similar specifications to VISHAY BAQ135-GS08.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Contact Plating
  • Silver, Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOD-80 Variant
  • Number of Pins
  • 2
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2012
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -65°C
  • Terminal Position
  • END
  • Terminal Form
  • WRAP AROUND
  • Current Rating
  • 200mA
  • Pin Count
  • 2
  • Element Configuration
  • Single
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 1nA @ 60V
  • Voltage - Forward (Vf) (Max) @ If
  • 1V @ 100mA
  • Forward Current
  • 200mA
  • Max Reverse Leakage Current
  • 1nA
  • Max Surge Current
  • 2A
  • Forward Voltage
  • 1V
  • Max Reverse Voltage (DC)
  • 125V
  • Average Rectified Current
  • 200mA
  • Peak Reverse Current
  • 1nA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 140V
  • Capacitance @ Vr, F
  • 3pF @ 0V 1MHz
  • Peak Non-Repetitive Surge Current
  • 2A
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY BAQ135-GS08.

Datasheets:

RohsStatement:

BAQ135-GS08 Overview


With this device, you'll get a maximum reverse leakage current of zero volts.Devices with this rating have an average rectified current of 200mA volts.200mA is the maximum value of forward current.The fuse's current rating is 200mA, which is the maximum current the fuse can handle for an indefinite time without deteriorating too much.There can be no surge current above 2A.Using the data chart, the peak reverse is 1nA in the datasheets.

BAQ135-GS08 Features


a maximal reverse leakage current of 1nA volts
an average rectified current of 200mA volts
a current rating of 200mA
the peak reverse is 1nA


BAQ135-GS08 Applications


There are a lot of Vishay Semiconductor Diodes Division
BAQ135-GS08 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
