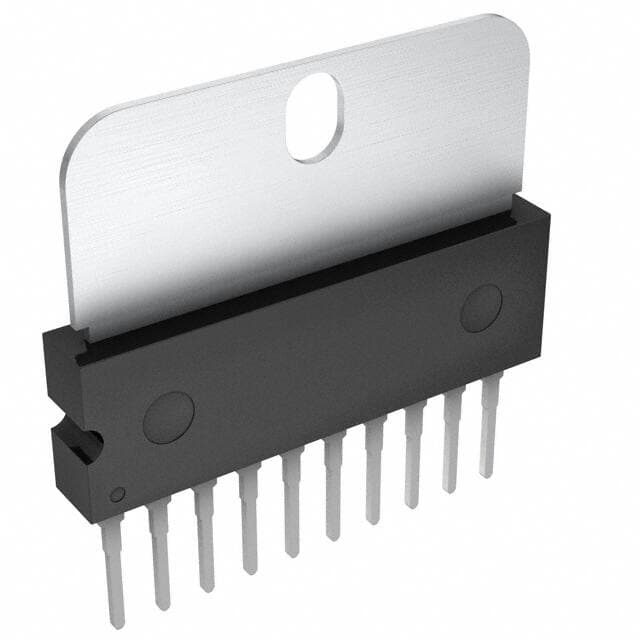

ROHM BA6219B

Manufacturer No:

BA6219B

Manufacturer:

ROHM

Package:

10-SIP Exposed Tab

Description:

Motor Drivers 10 12V V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA6219B information

ROHM BA6219B technical specifications, attributes, parameters and parts with similar specifications to ROHM BA6219B.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
10-SIP Exposed Tab

Number of Pins
10

Operating Temperature
-25°C~150°C TJ

Packaging
Tube

Published
2008

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Tin/Copper (Sn/Cu)

Applications
General Purpose

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
Bipolar

Voltage - Supply
8V~18V

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
260

Supply Voltage
12V

Terminal Pitch
2.54mm

Base Part Number
BA62*

Function
Driver - Fully Integrated, Control and Power Stage

Operating Supply Voltage
18V

Power Supplies
12V

Supply Voltage-Min (Vsup)
8V

Interface
On/Off

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

Nominal Supply Current
16mA

Output Configuration
Half Bridge (2)

Current - Output
2A

Logic Function
AND

Supply Current-Max (Isup)
60mA

Voltage - Load
8V~18V

Motor Type - AC, DC
Brushed DC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA6219B.

Datasheets:

rohmsemiconductor-ba6222-datasheets-7092.pdf

rohm-ba6219b-datasheets-4509.pdf

rohm-ba6219b-datasheets-4510.pdf

rohm-ba6219b-datasheets-4511.pdf

BA6219B Overview

Drivers controllers is designed with Tube package.The part is packged with 10-SIP Exposed Tab case.Drivers controllers is recommended to mount the part by Through Hole.Drivers controllers is fDrivers controllersting for the component connected in General Purpose.The device can supply 8V~18V volts.With regard to operating temperature, it ranges -25°C~150°C TJ. The motor type can be classified as Brushed DC.There are 10 terminations available in the part.The voltage can applied to the load at the rate of 8V~18V.Please take in mind that this amplifier should be run at 12V.Its recommended mounting way is Through Hole.Keep the part output current at 2A.The device employs the BRUSH DC MOTOR CONTROLLER analog IC.Drivers controllers is based on the BA62* part number.Drivers controllers is designed wDrivers controllersh 10 pins.Drivers controllers belongs to Motion Control Electronics series.This driver operates from a supply voltage of 18V.
