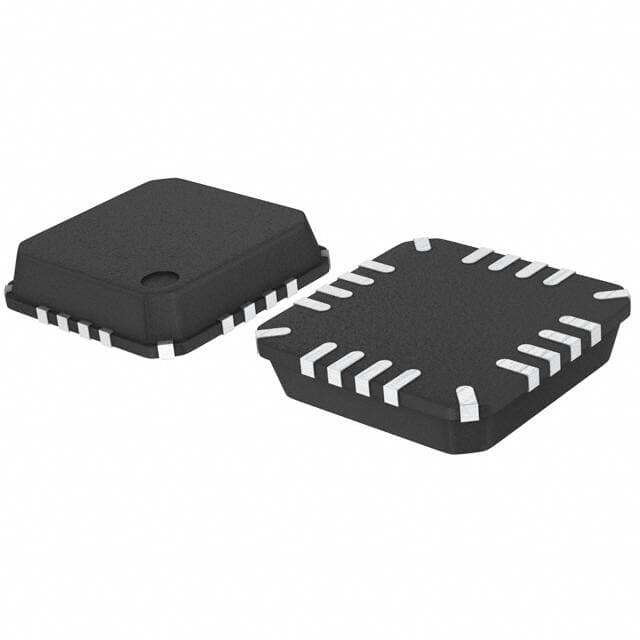

ROHM BA2901SKN-E2

Manufacturer No:

BA2901SKN-E2

Manufacturer:

ROHM

Package:

16-VFQFN

Description:

Surface Mount Tape & Reel (TR) 16mA mA 1300 ns ?s Linear Comparators 100dB dB 250nA pA 2010 800?A ?A 7mV mV Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA2901SKN-E2 information

ROHM BA2901SKN-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BA2901SKN-E2.

Type
Parameter

Contact Plating
Copper, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VFQFN

Number of Pins
16

Operating Temperature
-40°C~105°C

Packaging
Tape & Reel (TR)

Published
2010

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Type
General Purpose

Subcategory
Comparators

Technology
BIPOLAR

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
BA2901

Qualification Status
Not Qualified

Output Type
Open Collector

Operating Supply Voltage
18V

Number of Elements
4

Power Supplies
5V

Nominal Supply Current
800?A

Output Current
16mA

Quiescent Current
2mA

Response Time
1300 ns

Voltage - Supply, Single/Dual (±)
2V~36V ±1V~18V

Input Offset Voltage (Vos)
7mV

Voltage Gain
100dB

Average Bias Current-Max (IIB)
0.5?A

Supply Voltage Limit-Max
36V

Max Input Current
250nA

Input Bias Current
250nA

Voltage - Input Offset (Max)
7mV @ 5V

Current - Input Bias (Max)
0.25?A @ 5V

Current - Output (Typ)
16mA @ 5V

Height Seated (Max)
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA2901SKN-E2.

Datasheets:

rohmsemiconductor-ba10339-datasheets-0995.pdf

BA2901SKN-E2 Overview

The product is packaged in 16-VFQFN for ease of transportation.The comparator has an output type of Open Collector .This chip is designed with the Tape & Reel (TR) package.There are16 terminals on the comparator.Electronic comparator is a component of the Comparators family.When supplied with 5V voltage, the comparator is capable of performing a wide range of tasks.In terms of type, this is a typical General Purpose comparator.Electronic comparator has a total of 4 elements.Electronic comparator includes 16 pins.The type of mounting recommended is Surface Mount .Electronic comparator is recommended that the operating temperature be set to -40°C~105°C in order to prevent malfunctions.There are 16 pins on the comparator.You can find more pin-to-pin solutions for your special requirements by searching BA2901 .There is a quiescent current of 2mA in this comparator.There is a Surface Mount for mounting it on a PCB or other board.Normal operation of the device requires a nominal supply current of 800?A .The device can be operated with 5V power supplies.Electronic comparator is possible to input a maximum current of 250nA into the device.Based on the voltage formula, the voltage gain of the part is 100dB .The operating supply voltage for normal operation should be 18V .

BA2901SKN-E2 Features

Open Collector output capability
General Purpose IC
Employing 4 elements
Operates under -40°C~105°C
Quiescent Current: 2mA
Voltage Gain: 100dB

BA2901SKN-E2 Applications

There are a lot of ROHM Semiconductor
BA2901SKN-E2 linear comparators applications.

Notebooks and PDAs
Battery-Powered Electronics
General-Purpose Portable Devices
General-Purpose, Low-Voltage Applications
Self-diagnostics
Lithium ion battery monitoring
Battery management and protection
Current and voltage sensing
Analog front end
Power management
