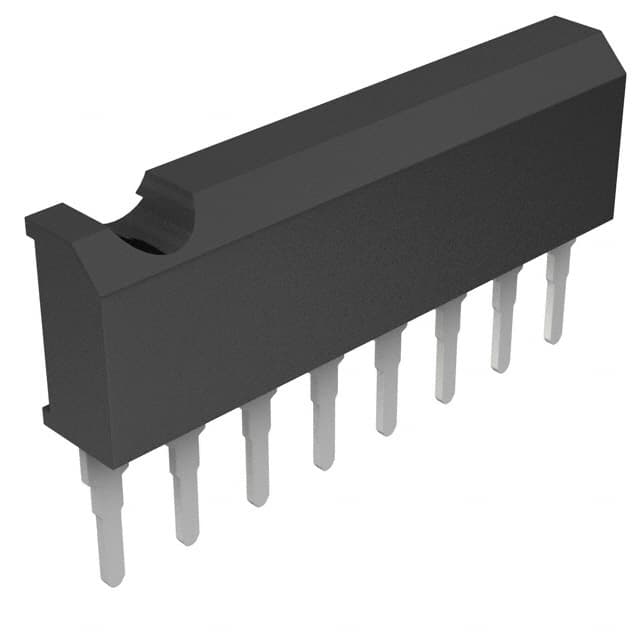

ROHM BA15532N

Manufacturer No:

BA15532N

Manufacturer:

ROHM

Package:

SIP

Description:

2 Channels 38mA per Channel 200nA 100 dB Instrumentational OP Amps 0.8μA 8 Pins SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA15532N information

ROHM BA15532N technical specifications, attributes, parameters and parts with similar specifications to ROHM BA15532N.

Type
Parameter

Mount
Through Hole

Package / Case
SIP

Pbfree Code
yes

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
TIN/TIN COPPER

Max Operating Temperature
75°C

Min Operating Temperature
-20°C

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
10

Pin Count
8

Qualification Status
Not Qualified

Power Supplies
+-15V

Temperature Grade
COMMERCIAL EXTENDED

Number of Channels
2

Operating Supply Current
8mA

Supply Current-Max
16mA

Slew Rate
8 V/μs

Architecture
VOLTAGE-FEEDBACK

Common Mode Rejection Ratio
100 dB

Current - Input Bias
200nA

Output Current per Channel
38mA

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
20MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
20000 kHz

Average Bias Current-Max (IIB)
0.8μA

Low-Offset
NO

Frequency Compensation
YES

Bias Current-Max (IIB) @25C
0.8μA

Voltage Gain-Min
10000

Common-mode Reject Ratio-Min
70 dB

Length
19.3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA15532N.

BA15532N Overview

The linear amplifier is packaged in a SIP case. This is a OPERATIONAL AMPLIFIER type op amp. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Regarding input offset voltage, op amp rates 500μV. This op amp can operate from a supply current at 8mA. The op amp ic has 2 channels on it. The temperature should not be lower than -20°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 75°C. The minimum voltage gain this buffer op amp is able to conduct is 10000.

BA15532N Features

8 Pins
supply voltage of 15V

BA15532N Applications

There are a lot of ROHM Semiconductor
BA15532N Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
