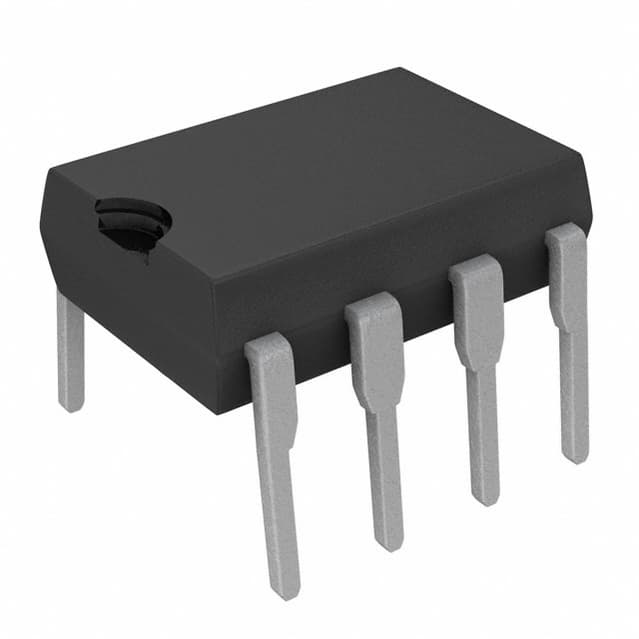

ROHM BA15532

Manufacturer No:

BA15532

Manufacturer:

ROHM

Package:

DIP

Description:

2 Channels 38mA per Channel 200nA 100 dB Instrumentational OP Amps 0.8μA 8 Pins DIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA15532 information

ROHM BA15532 technical specifications, attributes, parameters and parts with similar specifications to ROHM BA15532.

Type
Parameter

Mount
Through Hole

Package / Case
DIP

Published
2012

Pbfree Code
yes

Part Status
Active

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
TIN/TIN COPPER

Max Operating Temperature
75°C

Min Operating Temperature
-20°C

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
10

Pin Count
8

Qualification Status
Not Qualified

Power Supplies
+-15V

Temperature Grade
COMMERCIAL EXTENDED

Number of Channels
2

Operating Supply Current
8mA

Supply Current-Max
16mA

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
100 dB

Current - Input Bias
200nA

Output Current per Channel
38mA

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
20MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
20000 kHz

Average Bias Current-Max (IIB)
0.8μA

Low-Offset
NO

Frequency Compensation
YES

Bias Current-Max (IIB) @25C
0.8μA

Voltage Gain-Min
10000

Common-mode Reject Ratio-Min
70 dB

Length
9.3mm

Height Seated (Max)
3.7mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA15532.

BA15532 Overview

Op amp is packaged in DIP case. Op amps are OPERATIONAL AMPLIFIER types of amplifier on the chip. The number of terminations approaches 8. Linear amplifier has a total of 8 pins. Please take in mind that op amp should be run at 15V. Instrumentation amplifier is a part of Operational Amplifier. Regarding input offset voltage, buffer amplifier rates 500μV voltage. Operational amplifier can operate supply current at 8mA. Instrumentation amplifier has 2 channels on it. It should not lower than -20°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 75°C. To conduct electronic part voltage gain higher than 10000.

BA15532 Features

8 Pins
supply voltage of 15V

BA15532 Applications

There are a lot of ROHM Semiconductor
BA15532 Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
