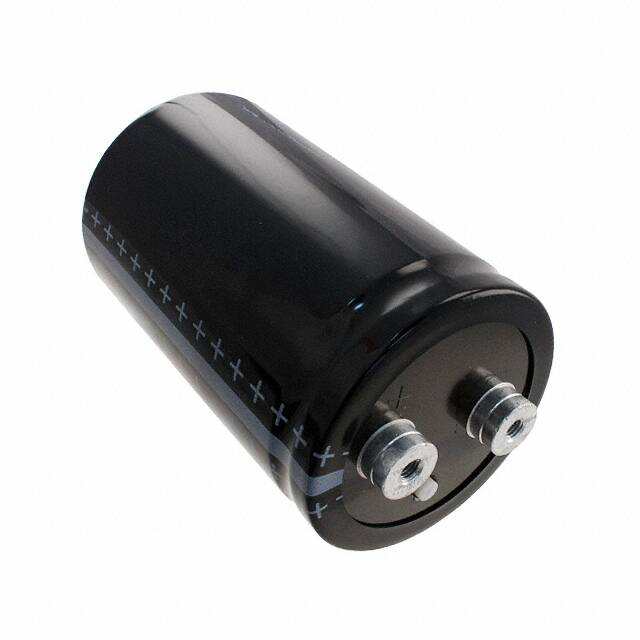

TDK B41456B9229M000

Manufacturer No:

B41456B9229M000

Manufacturer:

TDK

Package:

Radial, Can - Screw Terminals

Description:

B41456 22000?F Capacitor ±20% Bulk Chassis Mount 2.532Dia 64.30mm -40°C~85°C Polar Radial, Can - Screw Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B41456B9229M000 information

TDK B41456B9229M000 technical specifications, attributes, parameters and parts with similar specifications to TDK B41456B9229M000.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Chassis Mount

Package / Case
Radial, Can - Screw Terminals

Surface Mount
NO

Terminal Shape
LUG

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
B41456

Size / Dimension
2.532Dia 64.30mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Applications
General Purpose

Voltage - Rated
100V

Capacitance
22000?F

Packing Method
Cardboard

Terminal Pitch
28.5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
10mOhm @ 100Hz

Lead Spacing
1.122 28.50mm

Lifetime @ Temp
12000 Hrs @ 85°C

Polarization
Polar

Impedance
10mOhm

Ripple Current @ Low Frequency
17A @ 100Hz

Diameter
64.3mm

Height Seated (Max)
4.161 105.70mm

Length
105.7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TDK B41456B9229M000.

Datasheets:

tdkelectronicsinc-b41456b4100m000-datasheets-8587.pdf

B41456B9229M000 Overview

In order for 10mOhm @ 100Hz to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 17A @ 100Hz.Sitting height (Max) should not exceed 4.161 105.70mm.Set the rated voltage (URdc) to 100V.It is recommended to maintain the operating temperature at -40°C~85°C in order to maximize efficiency.

B41456B9229M000 Features

the ripple current is 17A @ 100Hz.
an operating temperature of -40°C~85°C

B41456B9229M000 Applications

There are a lot of TDK Electronics Inc.
B41456B9229M000 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
