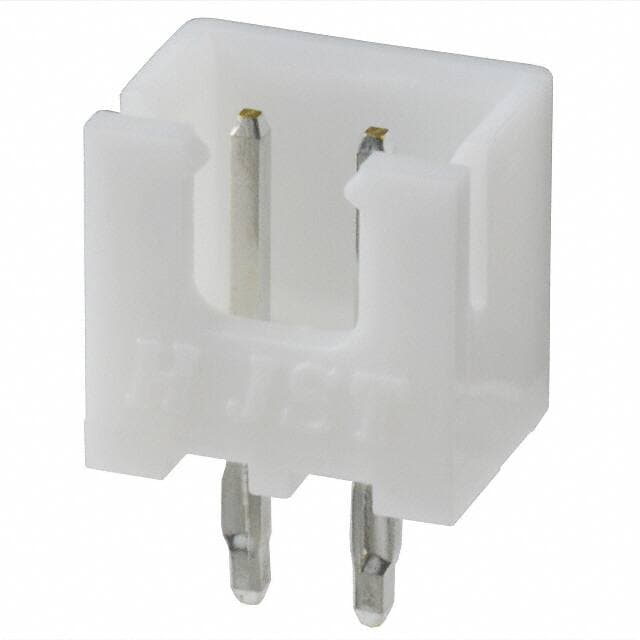

JST B2B-XH-A(LF)(SN)

Manufacturer No:

B2B-XH-A(LF)(SN)

Manufacturer:

Package:

Description:

XH Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.276 7.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B2B-XH-A(LF)(SN) information

JST B2B-XH-A(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B2B-XH-A(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA66), Nylon 6/6

Housing Material
Polyamide

Weight
28.349523g

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
XH

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Press-Fit, Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

Additional Feature
SHROUDED, TOP ENTRY

HTS Code
8536.69.40.40

Fastening Type
Detent Lock

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Depth
5.75mm

Insulation Height
0.276 7.00mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.098 2.50mm

Insulation Color
Natural

Voltage - Rated AC
250V

Contact Length - Post
0.134 3.40mm

Shrouding
Shrouded - 4 Wall

Lead Pitch
2.5mm

UL Flammability Code
94V-0

Housing Color
White

Contact Resistance
10mOhm

Insulation Resistance
1GOhm

Download datasheets and manufacturer documentation for JST B2B-XH-A(LF)(SN).

Datasheets:

jstsalesamericainc-sxh001tp06n-datasheets-2394.pdf

B2B-XH-A(LF)(SN) Overview

This product is packaged in a Header carton.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the XH Series.In addition, there are other features, such as SHROUDED, TOP ENTRY, to mention just a few.Mounting of the part is based on Through Hole.It runs at -25°C~85°C Operating Temperature.
