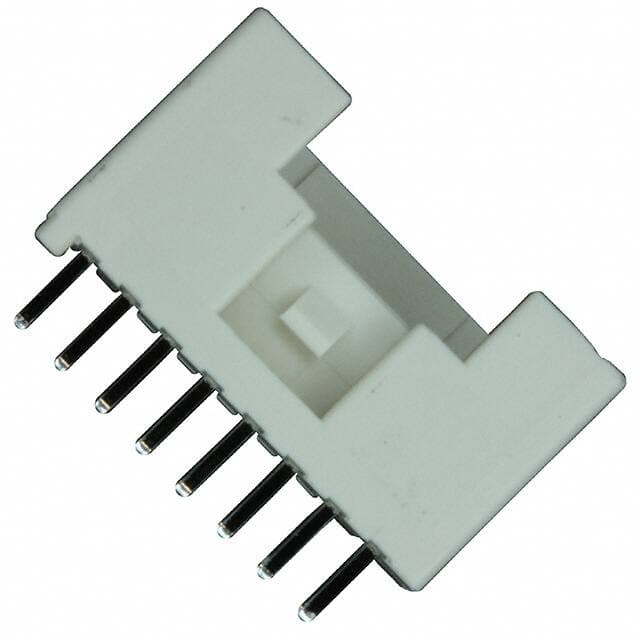

JST B16B-PUDSS-1(LF)(SN)

Manufacturer No:

B16B-PUDSS-1(LF)(SN)

Manufacturer:

Package:

Description:

PUD Series 2-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 16-Position Board to Cable/Wire 0.378 9.60mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B16B-PUDSS-1(LF)(SN) information

JST B16B-PUDSS-1(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B16B-PUDSS-1(LF)(SN).

Type
Parameter

Factory Lead Time
17 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
PUD

Published
2010

JESD-609 Code
e3

Feature
Board Guide

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
16

Number of Rows
2

Gender
Male

Voltage - Rated
250V

Additional Feature
POLARIZED, TOP ENTRY, SHROUDED

Fastening Type
Latch Holder

Contact Finish - Mating
Tin

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Insulation Height
0.378 9.60mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Row Spacing - Mating
0.079 (2.00mm)

Contact Length - Post
0.122 3.10mm

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Stack Height (Mating)
11mm

Material Flammability Rating
UL94 V-0

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST B16B-PUDSS-1(LF)(SN).

Datasheets:

jst-b16bpudss1lfsn-datasheets-0948.pdf

B16B-PUDSS-1(LF)(SN) Overview

A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the PUD Series of products.Additionally, there are other features, such as POLARIZED, TOP ENTRY, SHROUDED.A number of features make it more powerful because of its Board Guide feature.Through Hole mounts the part.There is no operating temperature for the device.
