JST B13B-ZR-SM4-TF(LF)(SN)
JST B13B-ZR-SM4-TF(LF)(SN)

JST B13B-ZR-SM4-TF(LF)(SN)

Manufacturer No:

B13B-ZR-SM4-TF(LF)(SN)

Manufacturer:

JST

Package:

Description:

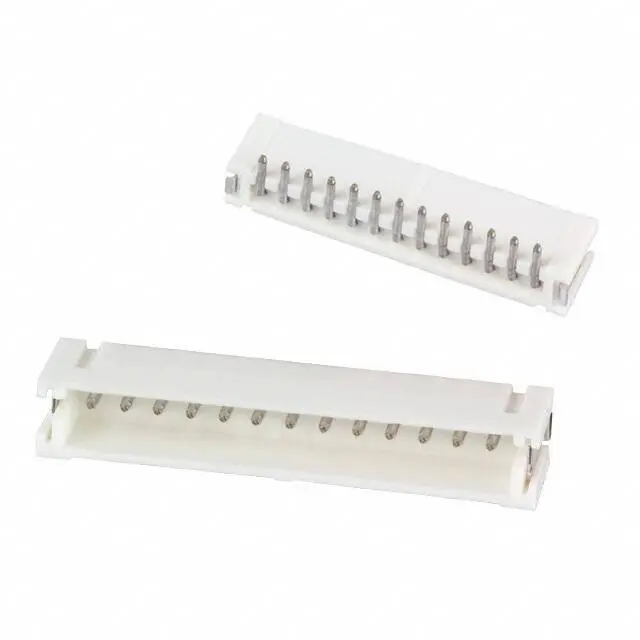

ZH Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 13-Position Board to Cable/Wire 0.197 5.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B13B-ZR-SM4-TF(LF)(SN) information

JST B13B-ZR-SM4-TF(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B13B-ZR-SM4-TF(LF)(SN).

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Brass
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Contact Shape
  • Circular
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T, Glass Filled
  • Housing Material
  • Nylon
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • ZH
  • Published
  • 2005
  • JESD-609 Code
  • e2
  • Feature
  • Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 13
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 50V
  • Additional Feature
  • TOP ENTRY
  • Fastening Type
  • Detent Lock
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 13
  • Insulation Height
  • 0.197 5.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.059 1.50mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 1.5mm
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Natural
  • Height
  • 5mm
  • Length
  • 22.5mm
  • Width
  • 3.7mm
  • Stack Height (Mating)
  • 6.4mm

Download datasheets and manufacturer documentation for JST B13B-ZR-SM4-TF(LF)(SN).

Datasheets:

B13B-ZR-SM4-TF(LF)(SN) Overview


It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the ZH Series of products.In addition, there are other features such as TOP ENTRY, to mention only a few.Its Solder Retention feature renders it more powerful in many ways.The part is mounted by Surface Mount.The device runs in -25°C~85°C Operating Temperature.

B13B-ZR-SM4-TF(LF)(SN) Features


ZH series


B13B-ZR-SM4-TF(LF)(SN) Applications


There are a lot of JST Sales America Inc.
B13B-ZR-SM4-TF(LF)(SN) Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
