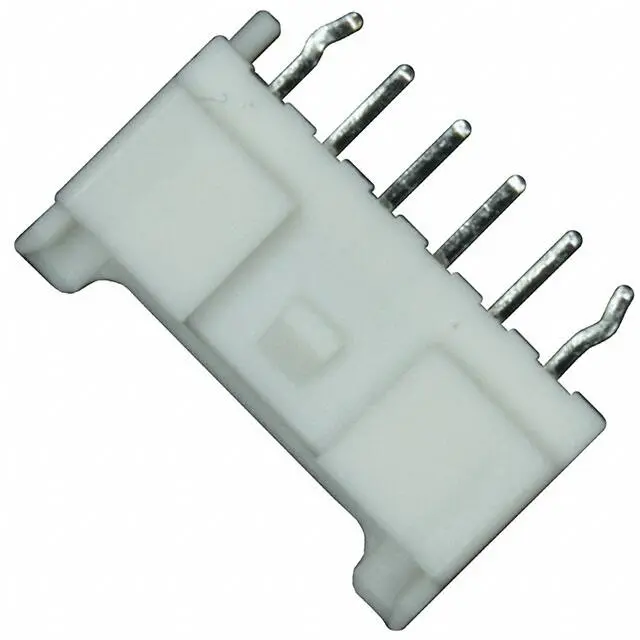

JST B06B-PASK-1(LF)(SN)

Manufacturer No:

B06B-PASK-1(LF)(SN)

Manufacturer:

Package:

Description:

PA Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 6-Position Board to Cable/Wire 0.303 7.70mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B06B-PASK-1(LF)(SN) information

JST B06B-PASK-1(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B06B-PASK-1(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
PA

Published
2005

JESD-609 Code
e3

Feature
Board Guide

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Kinked Pin, Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
6

Number of Rows
1

Voltage - Rated
250V

Additional Feature
SHROUDED, TOP ENTRY

Fastening Type
Locking Ramp

Contact Finish - Mating
Tin

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Terminal Pitch
2mm

Insulation Height
0.303 7.70mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Contact Length - Post
0.118 3.00mm

Shrouding
Shrouded - 4 Wall

Contact Length - Mating
0.126 3.20mm

UL Flammability Code
94V-0

Housing Color
White

Overall Contact Length
0.319 8.10mm

Stack Height (Mating)
9.9mm 14.7mm 14.9mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for JST B06B-PASK-1(LF)(SN).

Datasheets:

jstsalesamericainc-spal001tp05-datasheets-3025.pdf

B06B-PASK-1(LF)(SN) Overview

A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the PA Series of products.Additionally, there are other features, such as SHROUDED, TOP ENTRY.A number of features make it more powerful because of its Board Guide feature.Through Hole mounts the part.There is no operating temperature for the device.

B06B-PASK-1(LF)(SN) Features

PA series

B06B-PASK-1(LF)(SN) Applications

There are a lot of JST Sales America Inc.
B06B-PASK-1(LF)(SN) Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
