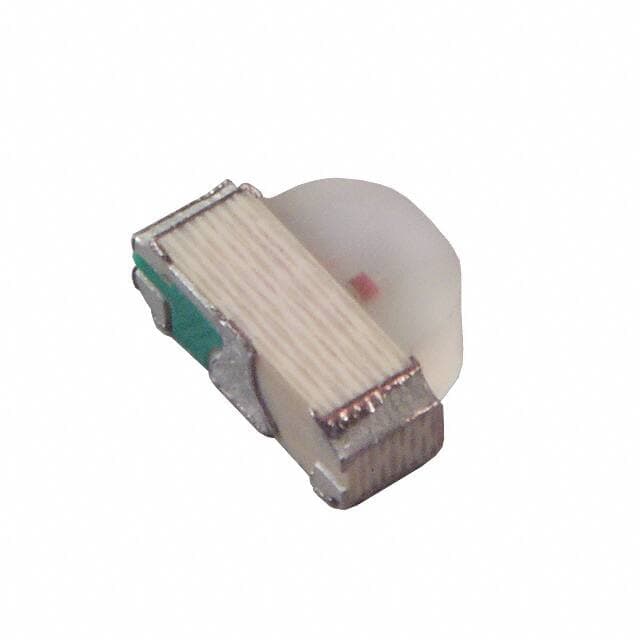

Stanley Electric Co AYPG1211F-TR
Manufacturer No:
AYPG1211F-TR
Manufacturer:
Package:
2-SMD, No Lead
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AYPG1211F-TR information
Stanley Electric Co AYPG1211F-TR technical specifications, attributes, parameters and parts with similar specifications to Stanley Electric Co AYPG1211F-TR.
- Type
- Parameter
- Factory Lead Time
- 11 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount, Right Angle
- Package / Case
- 2-SMD, No Lead
- Number of Pins
- 3
- Shape
- RECTANGULAR
- Packaging
- Tape & Reel (TR)
- Series
- 1211F
- Size / Dimension
- 3.00mm Lx2.00mm W
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 4 (72 Hours)
- Number of Terminations
- 3
- ECCN Code
- EAR99
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Color
- Green, Yellow
- Packing Method
- TAPE AND REEL 7"
- Number of Functions
- 1
- Depth
- 2mm
- Number of Elements
- 2
- Configuration
- Common Anode
- Voltage
- 2V
- Current
- 25A
- Power Dissipation
- 70mW
- Viewing Angle
- 150°, 140° Green, 150°, 140° Yellow
- Optoelectronic Device Type
- DUAL COLOR LED
- Forward Current
- 25mA
- Current - Test
- 20mA Green 20mA Yellow
- Lens Style
- Rectangle with Domed Top
- Lens Size
- 2.00mmx1.00mm
- Luminous Intensity
- 3 mcd
- Millicandela Rating
- 5.2mcd Green, 3mcd Yellow
- Lens Transparency
- Diffused
- Wavelength - Peak
- 560nm Green 580nm Yellow
- Lens Color
- White
- Reverse Voltage
- 4V
- Wavelength - Dominant
- 567nm Green 590nm Yellow
- Height
- 1.15mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
