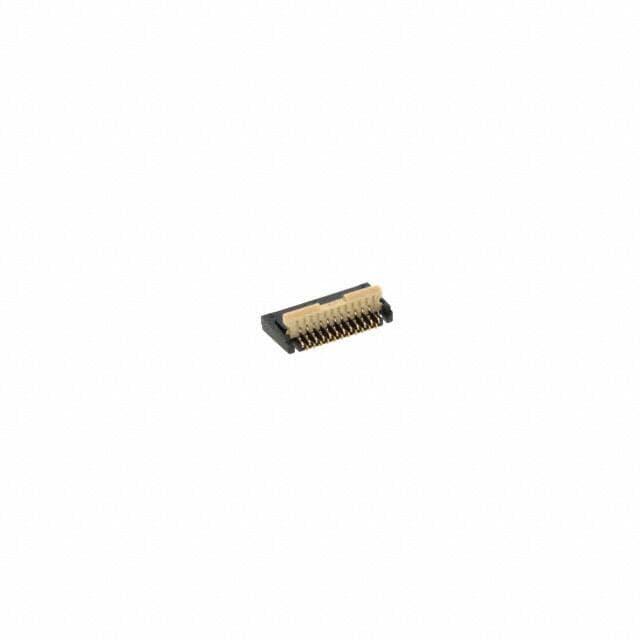

PANASONIC AYF212335A

Manufacturer No:

AYF212335A

Manufacturer:

Package:

Description:

Y2B Series FPC Contacts, Top and Bottom Bulk 0.008 0.20mm Solder 23 Positions Surface Mount, Right Angle Gold -55°C~85°C 0.2A per Contact

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AYF212335A information

PANASONIC AYF212335A technical specifications, attributes, parameters and parts with similar specifications to PANASONIC AYF212335A.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Copper Alloy

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Housing Material
Liquid Crystal Polymer (LCP)

Actuator Material
Liquid Crystal Polymer (LCP)

Operating Temperature
-55°C~85°C

Packaging
Bulk

Series
Y2B

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
23

Max Operating Temperature
85°C

Min Operating Temperature
-55°C

Voltage - Rated
50V

Current Rating (Amps)
0.2A per Contact

Pitch
0.008 0.20mm

Current Rating
200mA

Contact Finish
Gold

Mating Cycles
20

Flat Flex Type
FPC

Connector/Contact Type
Contacts, Top and Bottom

Locking Feature
Rotary Lock, Backlock

Height Above Board
0.035 0.88mm

FFC, FCB Thickness
0.20mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for PANASONIC AYF212335A.

AYF212335A Overview

There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number Y2B belongs to the Y2B Series.Whenever the temperature is below 85°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Surface Mount mount on the part.This device operates at a temperature of -55°C~85°C.

AYF212335A Features

Y2B series

AYF212335A Applications

There are a lot of Panasonic Electric Works
AYF212335A FFC, FPC (Flat Flexible) Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
