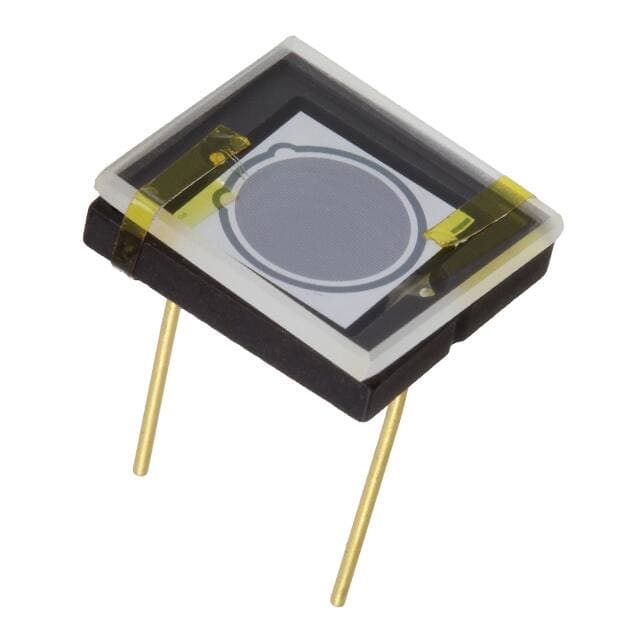

Opto Diode Corp AXUV20HS1

Manufacturer No:

AXUV20HS1

Manufacturer:

Opto Diode Corp

Package:

SIP

Description:

Through Hole -10°C~40°C Tray SIP 160V 19.7mm2 100nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AXUV20HS1 information

Opto Diode Corp AXUV20HS1 technical specifications, attributes, parameters and parts with similar specifications to Opto Diode Corp AXUV20HS1.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Through Hole

Package / Case
SIP

Operating Temperature
-10°C~40°C

Packaging
Tray

Series
AXUV

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
40°C

Min Operating Temperature
-10°C

Voltage - DC Reverse (Vr) (Max)
160V

Max Reverse Voltage (DC)
160V

Dark Current
100nA

Spectral Range
250nm ~ 1100nm

Active Area
19.7mm2

Current - Dark (Typ)
100nA

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Opto Diode Corp AXUV20HS1.

AXUV20HS1 Overview

To protect them from damage, these photodiodes are packaged in the Tray. For safety reasons, the photodiodes are packaged in SIP packages. When reverse-biased continuously, photodiodes can withstand a maximum voltage of 160V. When operating in reverse-bias mode, the photodiodes should not exceed 160V. Photodiodes should operate at a temperature of 40°C. In spite of this, the photodiodes should be operated at a minimum operating temperature of -10°C. In the absence of light input, a photodiode produces 100nA current.

AXUV20HS1 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -10°C~40°C
Packaging: Tray
Spectral Range: 250nm ~ 1100nm

AXUV20HS1 Applications

There are a lot of Opto Diode Corp
AXUV20HS1 Photodiodes applications.

Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
