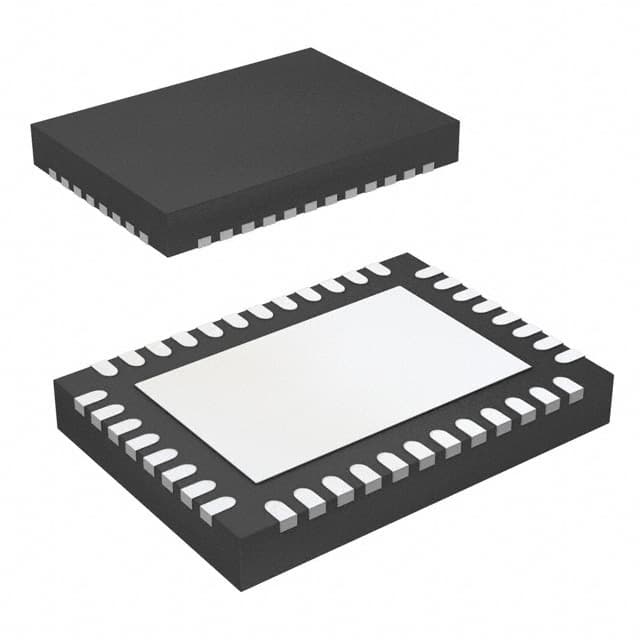

ONSEMI AX8052F131-2-TX30

Manufacturer No:

AX8052F131-2-TX30

Manufacturer:

ONSEMI

Package:

40-VFQFN Exposed Pad

Description:

TxRx + MCU 400MHz~470MHz 800MHz~940MHz 2.2V~3.6V SPI, UART 2Mbps 13mA~45mA - Transmitting 4FSK, ASK, FSK, GFSK, MSK, O-QPSK, PSK 64kB Flash 8.25kB SRAM 40-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AX8052F131-2-TX30 information

ONSEMI AX8052F131-2-TX30 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI AX8052F131-2-TX30.

Type
Parameter

Lifecycle Status
CONSULT SALES OFFICE (Last Updated: 1 week ago)

Factory Lead Time
15 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
40-VFQFN Exposed Pad

Number of Pins
40

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2015

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
TxRx + MCU

Voltage - Supply
2.2V~3.6V

Frequency
400MHz~470MHz 800MHz~940MHz

Interface
SPI, UART

Memory Size
64kB Flash 8.25kB SRAM

RAM Size
1kB

Memory Type
FLASH

Watchdog Timer
Yes

Data Bus Width
8b

Number of Timers/Counters
5

Protocol
Zigbee®

Number of Programmable I/O
21

Power - Output
16dBm

RF Family/Standard
802.15.4, General ISM < 1GHz

Data Rate (Max)
2Mbps

Serial Interfaces
SPI, UART

Current - Transmitting
13mA~45mA

Modulation
4FSK, ASK, FSK, GFSK, MSK, O-QPSK, PSK

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI AX8052F131-2-TX30.

AX8052F131-2-TX30 Overview

As a result of RF transceiver IC's 40-VFQFN Exposed Pad package, it helps to save board space on the board. We are using Surface Mount as the RF transceiver's mounting method.With transceiver RF's high efficiency, transceiver RF emerges as a TxRx + MCU.Using advanced packaging techniques Tape & Reel (TR), high reliability is ensured.On this transceiver RF circuit board, there are 40 pins.The transceiver is mounted by a Surface Mount-axis.Using the frequency of 400MHz~470MHz 800MHz~940MHz, RF transceiver operates .
