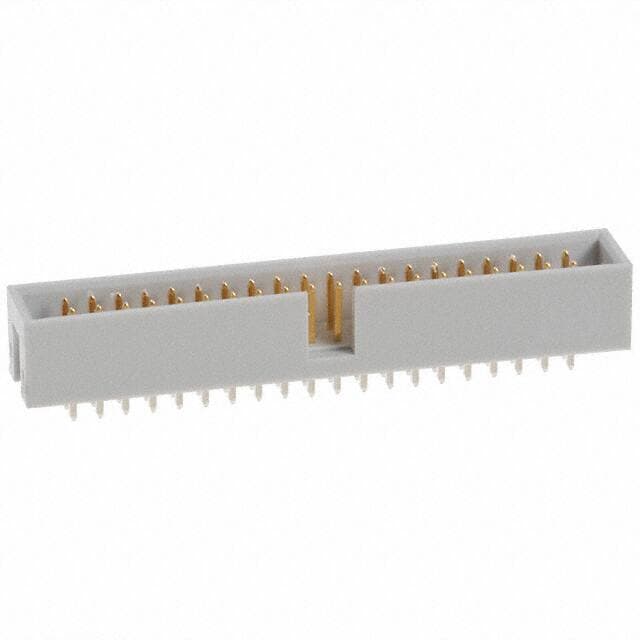

Assmann WSW Components AWHW40G-0102-T-R
Assmann WSW Components AWHW40G-0102-T-R

Assmann WSW Components AWHW40G-0102-T-R

Manufacturer No:

AWHW40G-0102-T-R

Manufacturer:

Assmann WSW Components

Package:

Description:

2-Row Header Solder Brass Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 40-Position Board to Cable/Wire 0.354 9.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AWHW40G-0102-T-R information

Assmann WSW Components AWHW40G-0102-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components AWHW40G-0102-T-R.

  • Type
  • Parameter
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • Plastic
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Published
  • 2011
  • Feature
  • Keying Slot
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 40
  • Color
  • Grey
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A
  • Insulation Height
  • 0.354 9.00mm
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Gray
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.130 3.30mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • Lead Pitch
  • 2.54mm
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.224 5.70mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.358 inch
  • Body Depth
  • 0.358 inch
  • Insulation Resistance
  • 5000000000Ohm
  • Mating Contact Pitch
  • 0.1 inch
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 1000VAC V
  • Height
  • 9mm
  • Length
  • 58.4mm
  • Width
  • 8.95mm

Download datasheets and manufacturer documentation for Assmann WSW Components AWHW40G-0102-T-R.

Datasheets:

AWHW40G-0102-T-R Overview


Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A number of features make the Keying Slot feature more powerful.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.

AWHW40G-0102-T-R Features




AWHW40G-0102-T-R Applications


There are a lot of Assmann WSW Components
AWHW40G-0102-T-R Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
