Assmann WSW Components AWHW24G-0202-T-R
Assmann WSW Components AWHW24G-0202-T-R

Assmann WSW Components AWHW24G-0202-T-R

Manufacturer No:

AWHW24G-0202-T-R

Manufacturer:

Assmann WSW Components

Package:

Description:

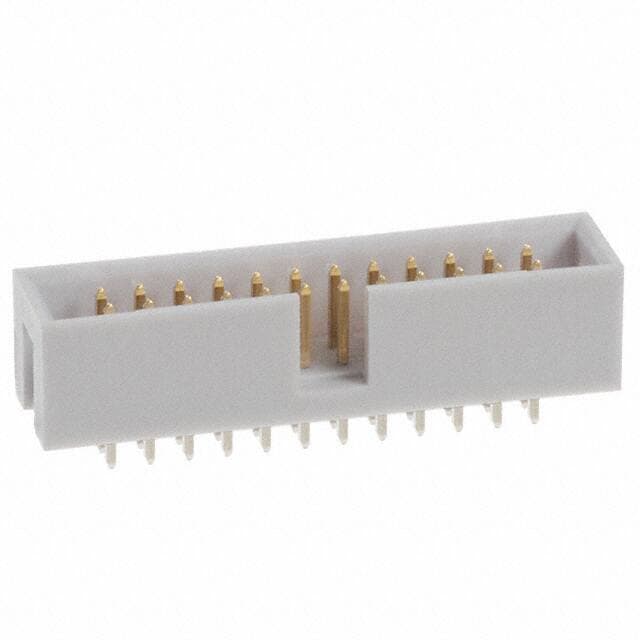

2-Row Header Solder Brass Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 24-Position Board to Cable/Wire 0.354 9.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AWHW24G-0202-T-R information

Assmann WSW Components AWHW24G-0202-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components AWHW24G-0202-T-R.

  • Type
  • Parameter
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • Plastic
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Published
  • 2001
  • Feature
  • Keying Slot
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 24
  • Color
  • Grey
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Orientation
  • Straight
  • Insulation Height
  • 0.354 9.00mm
  • Style
  • Board to Cable/Wire
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Gray
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.130 3.30mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • Lead Pitch
  • 2.54mm
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.224 5.70mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.356 inch
  • Body Depth
  • 0.354 inch
  • Rated Current (Signal)
  • 3A
  • Contact Resistance
  • 30mOhm
  • Insulation Resistance
  • 5000000000Ohm
  • Mating Contact Pitch
  • 0.1 inch
  • Max Current Rating
  • 3A
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 1000VAC V
  • Height
  • 9mm

Download datasheets and manufacturer documentation for Assmann WSW Components AWHW24G-0202-T-R.

Datasheets:

AWHW24G-0202-T-R Overview


The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.It is more powerful in many ways due to its Keying Slot feature.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.

AWHW24G-0202-T-R Features




AWHW24G-0202-T-R Applications


There are a lot of Assmann WSW Components
AWHW24G-0202-T-R Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology

User Guide
