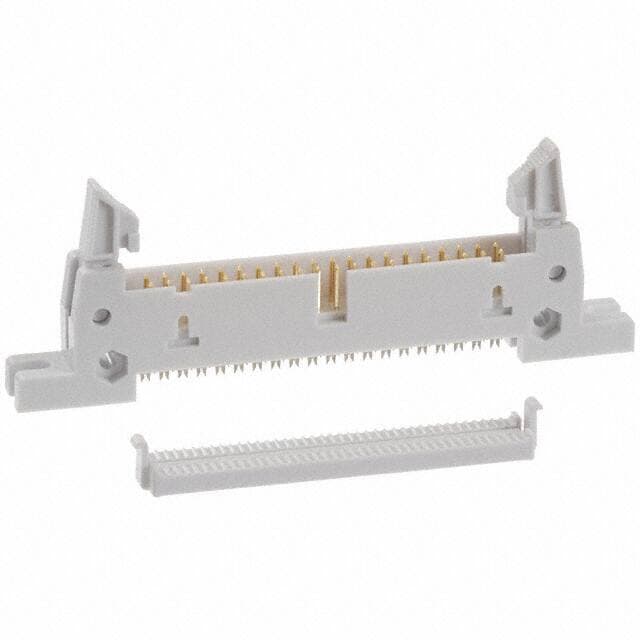

Assmann WSW Components AWH40G-E222-IDC-R

Manufacturer No:

AWH40G-E222-IDC-R

Manufacturer:

Assmann WSW Components

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AWH40G-E222-IDC-R information

Assmann WSW Components AWH40G-E222-IDC-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components AWH40G-E222-IDC-R.

Type
Parameter

Contact Material
Brass

Mount
Panel

Mounting Type
Panel Mount

Housing Material
Plastic

Packaging
Tray

Published
2006

Feature
Feed Through

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Header

Number of Positions
40

Color
Gray

Number of Rows
2

Fastening Type
Latch Lock/Eject Hooks, Short

Contact Type
Male Pin

Pitch
0.100 2.54mm

Total Number of Contacts
40

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Operating Temperature (Max)
105°C

Housing Color
Grey

Body Depth
0.756 inch

Insulation Resistance
5000000000Ohm

Row Spacing
0.100 (2.54mm)

Body/Shell Style
RECEPTACLE

Termination Type
IDC

Polarization Key
POLARIZED HOUSING

Dielectric Withstanding Voltage
1000VAC V

Wire/Cable Type
Ribbon

Cable Termination
IDC

Wire Type
Ribbon Cable

Contact Design
PREASSEM CONN

Height
19.1mm

Length
85.4mm

Width
8.2mm

Plating Thickness
100?in

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Assmann WSW Components AWH40G-E222-IDC-R.

Datasheets:

assmannwswcomponents-awh40ge222idcr-datasheets-7950.pdf

No product details available
