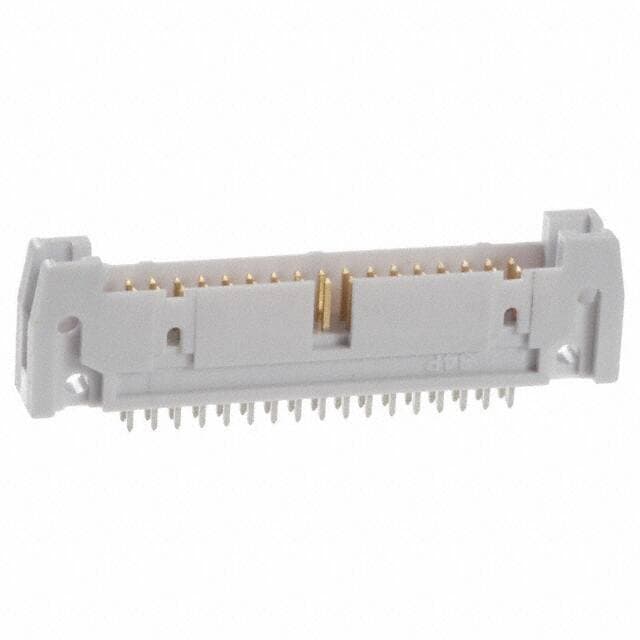

Assmann WSW Components AWH34G-0202-T-R
Assmann WSW Components AWH34G-0202-T-R

Assmann WSW Components AWH34G-0202-T-R

Manufacturer No:

AWH34G-0202-T-R

Manufacturer:

Assmann WSW Components

Package:

Description:

2-Row Header Solder Brass Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 34-Position Board to Cable/Wire 0.669 17.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AWH34G-0202-T-R information

Assmann WSW Components AWH34G-0202-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components AWH34G-0202-T-R.

  • Type
  • Parameter
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • Plastic
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Published
  • 2011
  • Feature
  • Keying Slot
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 34
  • Color
  • Grey
  • Number of Rows
  • 2
  • HTS Code
  • 8536.69.40.40
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A
  • Orientation
  • Straight
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Gray
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.130 3.30mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Depth
  • 0.663 inch
  • Contact Resistance
  • 10mOhm
  • Insulation Resistance
  • 5000000000Ohm
  • Mating Contact Pitch
  • 0.1 inch
  • Max Current Rating
  • 1A
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 1000VAC V
  • Height
  • 17mm
  • Length
  • 62.4mm
  • Width
  • 8.3mm

Download datasheets and manufacturer documentation for Assmann WSW Components AWH34G-0202-T-R.

Datasheets:

AWH34G-0202-T-R Overview


This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.In many ways, Keying Slot makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.

AWH34G-0202-T-R Features




AWH34G-0202-T-R Applications


There are a lot of Assmann WSW Components
AWH34G-0202-T-R Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
