Manufacturer No:

AWH30A-0232-T-R

Manufacturer:

Assmann WSW Components

Package:

Description:

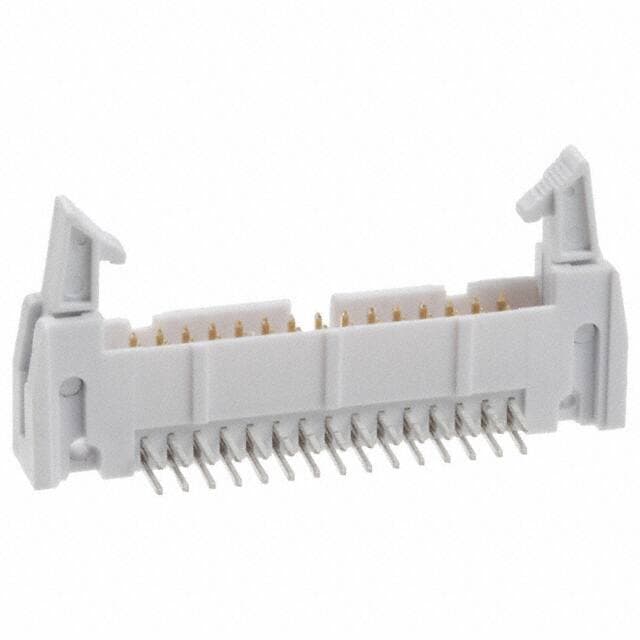

2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT), Glass Filled 30-Position Board to Cable/Wire 0.669 17.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AWH30A-0232-T-R information

Assmann WSW Components AWH30A-0232-T-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components AWH30A-0232-T-R.

  • Type
  • Parameter
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • Plastic
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Published
  • 2012
  • Feature
  • Keying Slot
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 30
  • Color
  • Grey
  • Number of Rows
  • 2
  • Fastening Type
  • Latch Lock/Eject Hooks, Long
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A
  • Insulation Height
  • 0.669 17.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Insulation Color
  • Gray
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.150 3.81mm
  • Shrouding
  • Shrouded - 4 Wall
  • Contact Finish - Post
  • Tin
  • Height
  • 8.2mm
  • Length
  • 57.4mm
  • Width
  • 16.9mm
  • Contact Finish Thickness - Mating
  • Flash
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Assmann WSW Components AWH30A-0232-T-R.

Datasheets:

AWH30A-0232-T-R Overview


The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There are a number of advantages to its Keying Slot feature.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
