Olimex LTD AVR-CAN
Olimex LTD AVR-CAN

Olimex LTD AVR-CAN

Manufacturer No:

AVR-CAN

Manufacturer:

Olimex LTD

Package:

Description:

Evaluation Platform MCU 8-Bit AVR 8 Bits

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AVR-CAN information

Olimex LTD AVR-CAN technical specifications, attributes, parameters and parts with similar specifications to Olimex LTD AVR-CAN.

  • Type
  • Parameter
  • Factory Lead Time
  • 2 Weeks
  • Mounting Type
  • Fixed
  • Series
  • AVR®
  • Published
  • 2008
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Type
  • MCU 8-Bit
  • Operating Supply Voltage
  • 5.5V
  • Number of Bits
  • 8
  • Core Processor
  • AVR
  • Data Bus Width
  • 8b
  • Utilized IC / Part
  • AT90CAN128
  • Evaluation Kit
  • Yes
  • Core Architecture
  • AVR
  • Contents
  • Board(s)
  • Board Type
  • Evaluation Platform
  • Height
  • 0m
  • Length
  • 60mm
  • Width
  • 55mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Olimex LTD AVR-CAN.

Datasheets:

AVR-CAN Description

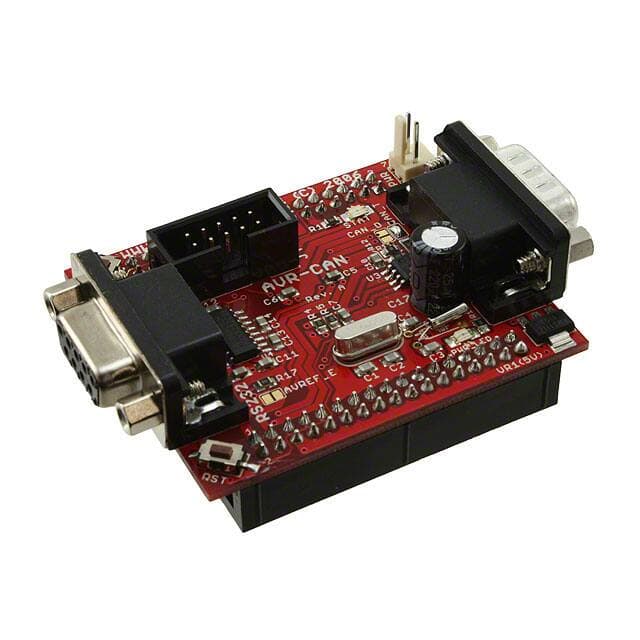

AVR-CAN is a simple way to study Atmel's AT90CAN128 microcontroller. Due to its small size (60x55mm) and the inclusion of CAN and RS232, the customer is able to create a bridge between UART and CAN networks. The board can be readily converted into a snap-on prototype or other motherboards where extra circuits are constructed because all AVR pins are available on extension connectors.



AVR-CAN Features


  • Reset button and circuit

  • On board voltage regulator (+5V)

  • Power supply LED

  • Power supply connector

  • Extension pin headers for every uC pin

  • FR-4, 1.5 mm (0.062''), soldermask, white silkscreen component print

  • Dimension 60x50 mm (2.36x1.96'')

  • MCU: AT90CAN128 ? 128Kb Flash, 4Kb EEPROM, 4Kb SRAM, 52 GPIO, 32 working registers, a CAN controller, Real Time Clock, four Timer/Counters with PWM, 2 UARTs, Two-wire Serial Interface, an 8-channel 10-bit ADC, Watchdog Timer, SPI serial port, JTAG interface, five selectable power saving modes

  • 5x2 pin JTAG connector for programming and debugging with AVR-JTAG-L or AVR-JTAG-USB

  • RS232 DB9 female connector and driver

  • CAN controller and interface

  • User button

  • Status LED

  • 16 MHz oscillator circuit

  • 32768 Hz oscillator circuit



AVR-CAN Applications


  • Data acquisition systems

  • Automatic light intensity control system

  • Industrial temperature control systems


User Guide
