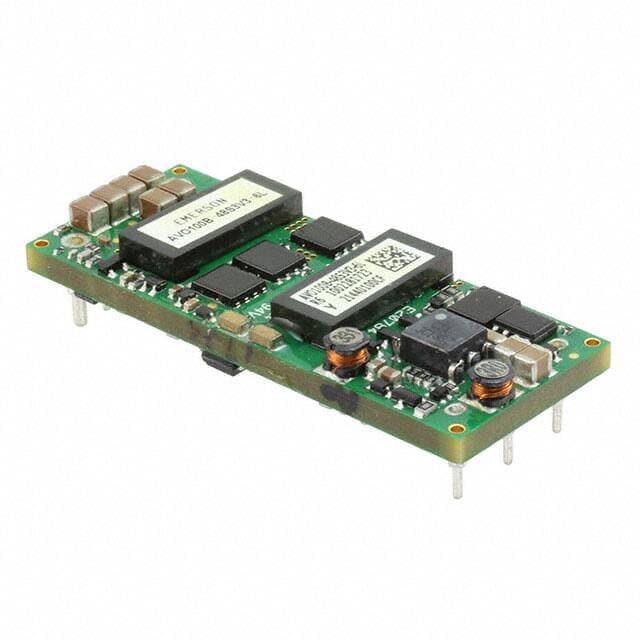

Artesyn Embedded Power AVO100B-48S3V3-6L

Manufacturer No:

AVO100B-48S3V3-6L

Manufacturer:

Artesyn Embedded Power

Package:

8-DIP Module, 1/8 Brick

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AVO100B-48S3V3-6L information

Artesyn Embedded Power AVO100B-48S3V3-6L technical specifications, attributes, parameters and parts with similar specifications to Artesyn Embedded Power AVO100B-48S3V3-6L.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Through Hole

Package / Case
8-DIP Module, 1/8 Brick

Surface Mount
NO

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
AVO100B (99W)

Published
2013

Size / Dimension
2.28Lx0.90W x 0.35 H 57.9mmx22.9mmx8.9mm

Feature
Remote On/Off, OCP, OTP, OVP, UVLO

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Type
Isolated Module

Applications
ITE (Commercial)

Power (Watts)
99W

Technology
HYBRID

Terminal Position
DUAL

Terminal Form
PIN/PEG

Number of Functions
1

Reach Compliance Code
unknown

JESD-30 Code
R-XDMA-P8

Number of Outputs
1

Voltage - Isolation
2kV

Voltage - Input (Max)
75V

Output Voltage
3.3V

Voltage - Output 1
3.3V

Voltage - Input (Min)
36V

Input Voltage-Nom
48V

Trim/Adjustable Output
YES

Current - Output (Max)
30A

Total Power Output-Max
99W

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Artesyn Embedded Power AVO100B-48S3V3-6L.

Datasheets:

artesynembeddedpower-avo100b48s3v36l-datasheets-7998.pdf

artesynembeddedpower-avo50c48s3v36l-datasheets-1673.pdf

The Artesyn DC DC Converter AVO100B-48S3V3-6L is a high-performance, cost-effective DC-DC converter designed to provide reliable power conversion in a wide range of applications. It features a wide input voltage range of 36-75V, and a high efficiency of up to 95%. The output voltage is adjustable from 0.8V to 3.3V, and the output power is up to 99W. The AVO100B-48S3V3-6L is designed to meet the stringent requirements of industrial, medical, and telecom applications.

Features of the Artesyn DC DC Converter AVO100B-48S3V3-6L include:

? Wide input voltage range of 36-75V
? High efficiency of up to 95%
? Output voltage adjustable from 0.8V to 3.3V
? Output power up to 99W
? Low ripple and noise
? Over-voltage, over-current, and short-circuit protection
? RoHS compliant

Applications of the Artesyn DC DC Converter AVO100B-48S3V3-6L include:

? Industrial automation
? Medical equipment
? Telecom systems
? Automotive systems
? Networking systems
? Power supplies
? Battery charging systems
