INFINEON AUIRF7769L2TR
Manufacturer No:
AUIRF7769L2TR
Manufacturer:
Package:

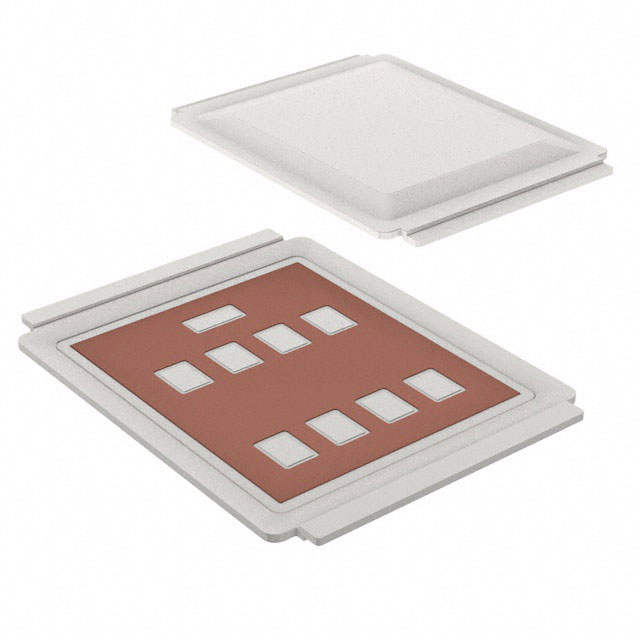

DirectFET? Isometric L8
Description:
MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 3.5m ? @ 74A, 10V ±20V 11560pF @ 25V 300nC @ 10V 100V DirectFET? Isometric L8
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
AUIRF7769L2TR Information
INFINEON AUIRF7769L2TR technical specifications, attributes, parameters and parts with similar specifications to INFINEON AUIRF7769L2TR.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- DirectFET? Isometric L8
- Number of Pins
- 15
- Transistor Element Material
- SILICON
- Operating Temperature
- -55°C~175°C TJ
- Packaging
- Tape & Reel (TR)
- Series
- HEXFET®
- Published
- 2015
- Type
- Parameter
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 9
- ECCN Code
- EAR99
- Technology
- MOSFET (Metal Oxide)
- Terminal Position
- BOTTOM
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Reference Standard
- AEC-Q101
Download datasheets and manufacturer documentation for INFINEON AUIRF7769L2TR.
Other Related Documents:
PCN Assembly/Origin:
PCN Packaging:
ConflictMineralStatement:
AUIRF7769L2TR Description
AUIRF7769L2TR is a 100v Automotive DirectFET? Power MOSFET. The AUIRF7769L2TR combines the latest Automotive HEXFET? Power MOSFET Silicon technology with the advanced DirectFET? packaging to achieve the lowest on-state resistance in a package that has the footprint of a DPak (TO-252AA) and only 0.7 mm profile. The DirectFET? package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, and infra-red or convection soldering techniques when application note AN-1035 is followed regarding the manufacturing methods and processes.?
AUIRF7769L2TR Features
Advanced Process Technology
Exceptionally Small Footprint and Low Profile
High Power Density
Low Parasitic Parameters
Dual Sided Cooling
175°C Operating Temperature
Repetitive Avalanche Capability for Robustness and Reliability
Lead free, RoHS and Halogen-free
Automotive Qualified
AUIRF7769L2TR Applications
Automotive Motor Drive
DC-DC
Other Heavy Load Applications
Cellular phones
Laptop computers
AUIRF7769L2TR Relevant information
