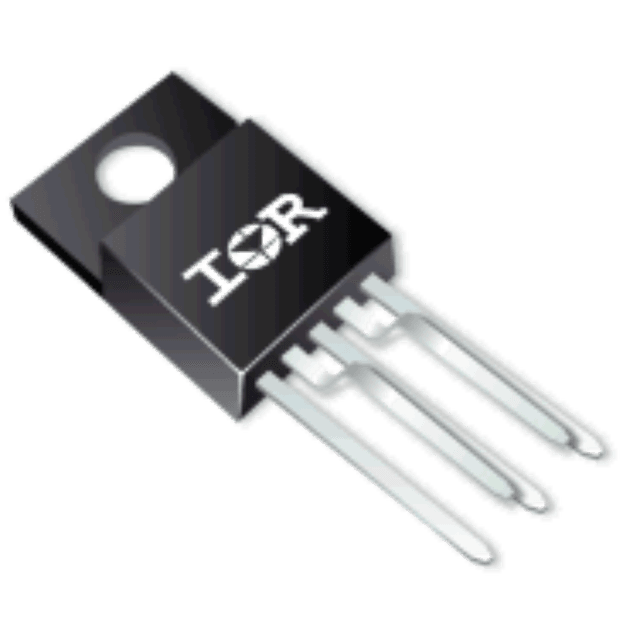

INFINEON AUIR3317
Manufacturer No:
AUIR3317
Manufacturer:
Package:
TO-220-5
Description:
N-Channel PMIC Automotive, AEC-Q100 Series AUIR3317 5 Pin 14V TO-220-5
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AUIR3317 information
INFINEON AUIR3317 technical specifications, attributes, parameters and parts with similar specifications to INFINEON AUIR3317.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- TO-220-5
- Number of Pins
- 5
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tube
- Series
- Automotive, AEC-Q100
- Published
- 2010
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 5
- ECCN Code
- EAR99
- Resistance
- 5.5mOhm
- Subcategory
- Peripheral Drivers
- Power Rating
- 2W
- Max Power Dissipation
- 2W
- Terminal Position
- SINGLE
- Number of Functions
- 1
- Supply Voltage
- 14V
- Base Part Number
- AUIR3317
- Number of Outputs
- 1
- Output Type
- N-Channel
- Max Output Current
- 120A
- Interface
- On/Off
- Current
- 23A
- Output Configuration
- High Side
- Power Dissipation
- 2W
- Output Current
- 23A
- Voltage - Supply (Vcc/Vdd)
- Not Required
- Input Type
- Non-Inverting
- Turn On Delay Time
- 300 ?s
- Switch Type
- General Purpose
- Output Current per Channel
- 7A
- Rise Time
- 80?s
- Fall Time (Typ)
- 100 ?s
- Nominal Input Voltage
- 26V
- Turn-Off Delay Time
- 350 ?s
- Ratio - Input:Output
- 1:1
- Voltage - Load
- 6V~26V
- Driver Number of Bits
- 1
- Fault Protection
- Current Limiting (Fixed), Over Temperature
- Rds On (Typ)
- 5.5m ?
- Built-in Protections
- TRANSIENT; OVER CURRENT; THERMAL
- Height
- 16.51mm
- Length
- 10.67mm
- Width
- 4.83mm
Download datasheets and manufacturer documentation for INFINEON AUIR3317.
Other Related Documents:
ConflictMineralStatement:
AUIR3317 Overview
It's packaged in the way of a Tube.It's included in the TO-220-5 package.The mounting type of the LED driver is Through Hole.It owns General Purpose switch type.The temperature should be set to -40°C~150°C TJ to ensure reliable functioning.By default, it is set to output 1.It uses a supply voltage of Not Required to operate.It has a maximum output voltage of N-Channel volts.It belongs to the AUIR3317 family.There are 5 terminations in it.5 pins are used for operation.There are 1 functions of the LED driver.To meet the operation criteria, the maximum output current drops to 120A.With a supply voltage of 14V, high efficiency is possible.It is positioned in the direction of Through Hole.The LED driver has 5.5mOhm resistance.The Automotive, AEC-Q100 series includes this electrical component.The output current is set to 23A in this case.This LED driver is self-contained in an econtainer with a capacity of Peripheral Drivers.
